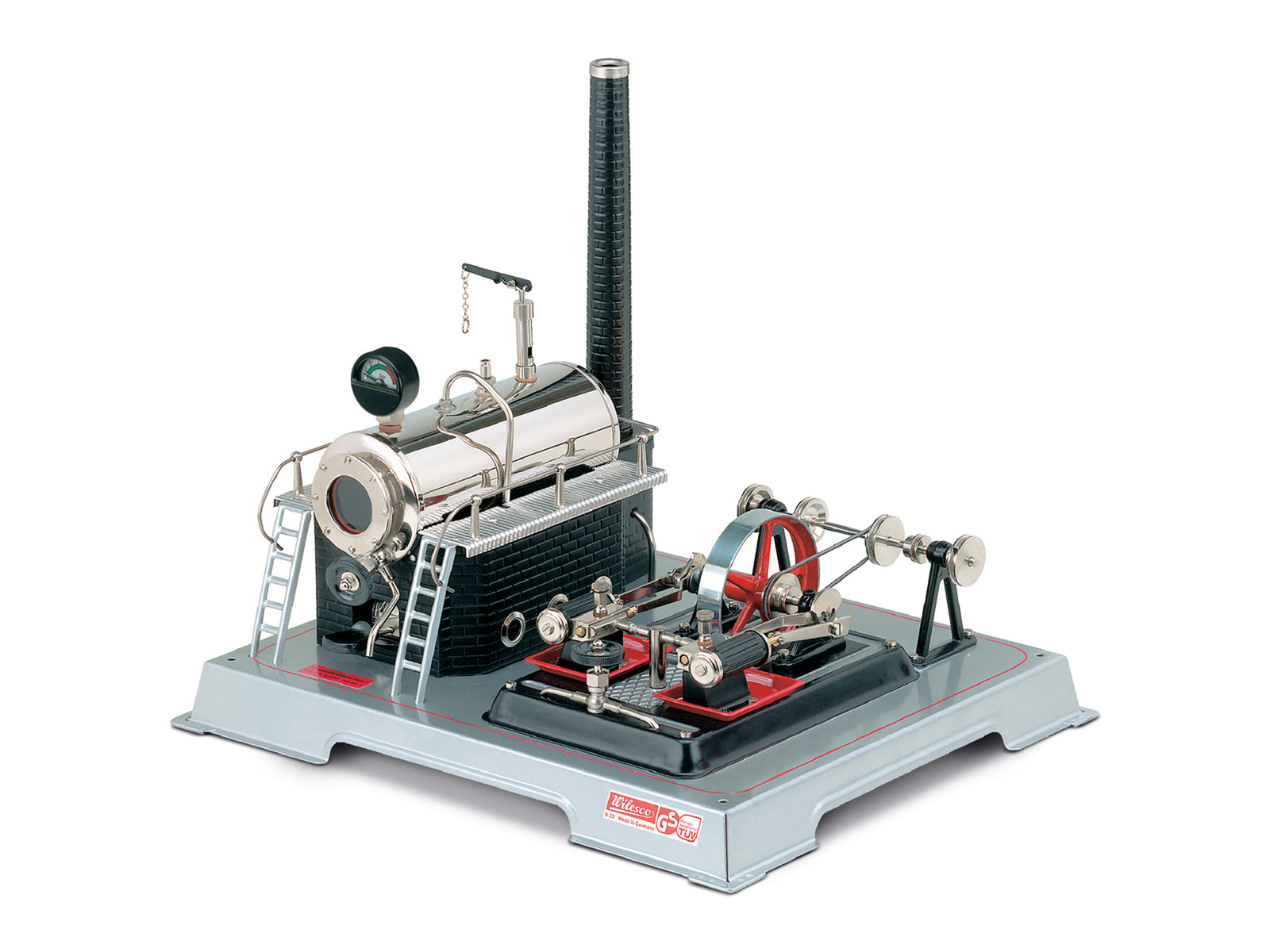

Wilesco D 22 Steam Engine W00022

A technically complete model which is impressive with its decorative silver/black finish. The unit is situated on a raised metal base with two double action fixed brass cylinders, steam jet oilers, flywheel diameter 80 mm, with large drive plate, forward and reverse movement, collecting tray for condensed water, fixed transmission with several drive wheels. Silver coloured metal base 290x350mm, height including smoke stack 320mm.

Features:

Brass Boiler
Highly Polished
Nickel Plated
Diameter 65mm
Length 165mm
Boiler Capacity 500cm ³
Sight Glass
Water Level Indicator
Water Draining Valve
Spring Loaded
Safety Valve
Steam Whistle
Chain
Pressure Gauge
Handwheel
Steam Shut Off Valve
Boiler Housing
2 Footbridges
Brass Cylinders
Steam Jet oilers
Flywheel Diameter 80mm

WILESCO D22 STEAM ENGINE WITH TWIN CYLINDERS Steam engine D22 heating with Witabs One of the most powerful machines in the WlLESCO range is this self-starting two-cylinder steam engine.

The boiler with the dimensions 6.5 x 16 cm has a volume of 530 ccm.

The engine unit is installed on a raised base.

The two cylinders are controlled by a common steam shut-off valve.

As an option, the machine has a transmission with five line rollers in three different sizes.

More details: Water drain valve Spring safety valve Steam whistle with chain hoist manometer Steam jet oiler and flywheel with a diameter of 7 cm Base dimensions: 30 x 35 cm Height: 32 cm Weight: 2.8 kg Gift packaging: 36 x 30 x 20 cm Boiler volume: 530 ccm Heating D22: dry fuel Witabs (3 packs included in the delivery)
