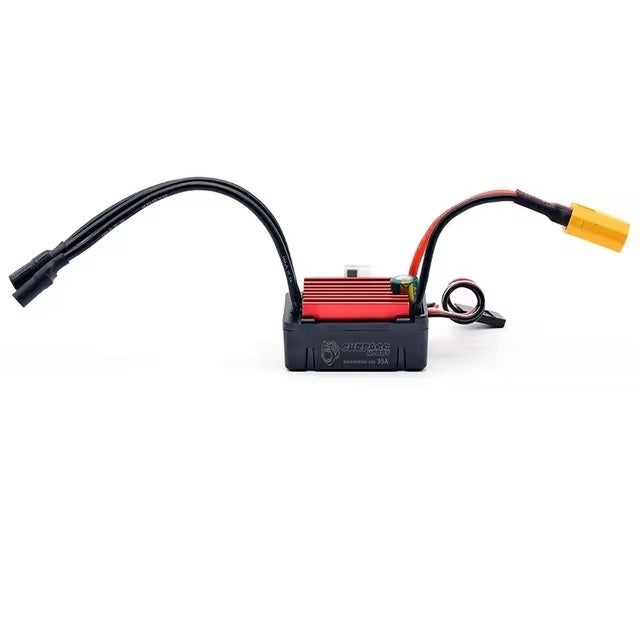

Surpass KK Waterproof 35A Brushless ESC Red & Black

35A ESC Brushless Waterproof Electric Speed Controller with T-Plug (Deans) Excellent Upgrade or Replacement Speed Controller for the Arrma Groms, Losi NASCAR, and Mini-T 2.0, Mini-B. Also for the Team Associated Reflex 14T & 14B.

Features:

1. Waterproof and dust-proof for all-weather races; Clean and dry it soon after use to avoid the connectors getting rusty.
2. Specially designed for RC cars with excellent start-up, acceleration, and linearity features.
3. Compatible with sensorless brushless motors.
4. Strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery, Over-heat protection, throttle signal loss protection.
6. Easily programmed and compatible with a pocket-sized program card.

Specification:

Constant Current/Burst Current: 35A/120A

Motor Type: Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH :

On-Road: 28XX-Size or smaller motor with the KV<6000KV

Off-Road/Buggy/Monster: 28XX-size or smaller motor with the KV <4000KV

For 3S Lipo or 9 cells NiMH

On-Road: 28XX-Size or smaller motor with the KV<4000KV

Off-Road/Buggy/Monster: 28XX-size or smaller motor with the KV <3000KV

Suitable Car: 1/20, 1/18, 1/16 and 1/14 Car and Buggy

Resistance: 0.0004ohm Battery: 2-3S Lipo/4-9Cells NiMH BEC Output: 5.0V/2A T-Plug (Deans Type Battery Connector) 3.5mm Motor Connectors Dimensions/Weight: 40 x 32 x 20mm / 37g

* To Program Use: KS-100010-02 Program Card for 25A & 35A Mini ESC

Key Specifications

• Motor Type: Sensorless Brushless Motor
• Battery: 2-3S Lipo/4-9Cells NiMH

Full Specifications

Constant Current/Burst Current	35A/120A
On-Road	28XX-Size or smaller motor with the KV<6000KV
Off-Road/Buggy/Monster	28XX-size or smaller motor with the KV <4000KV
Suitable Car	1/20, 1/18, 1/16 and 1/14 Car and Buggy
Resistance	0.0004ohm
BEC Output	5.0V/2A
Dimensions/Weight	40 x 32 x 20mm / 37g
* To Program Use	KS-100010-02 Program Card for 25A & 35A Mini ESC

What's Included

• Battery: 2-3S Lipo/4-9Cells NiMH
