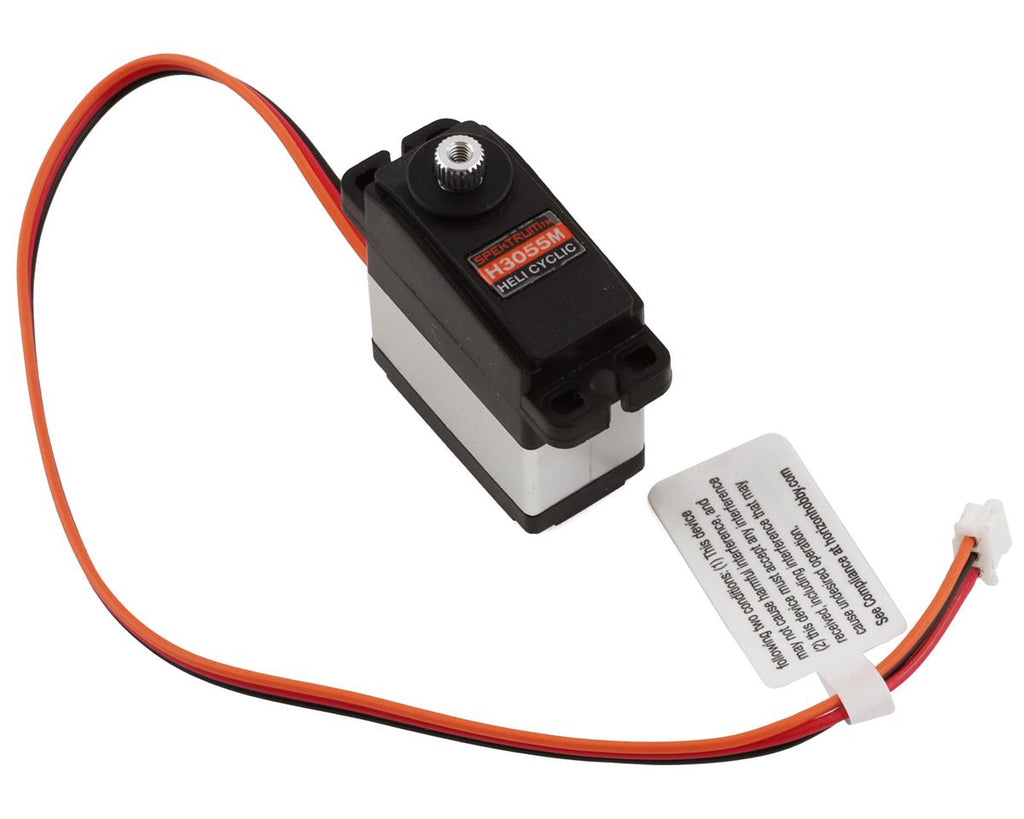

This is the Spektrum SH3055M Sub-Micro Digital Metal Gear Servo with Micro Connector. Featuring metal gears and a digital design this servo offers exceptional torque and speed for it's size. Used in the Blade 230S SMART helicopter this can be used as a replacement cyclic servo.
Specifications:
Speed: @4.8V 0.067 sec/60 deg, @6V 0.053 sec/60 deg
Torque: @4.8V 29 oz-in (2.1kg-cm), @6V 36 oz-in (2.6kg-cm)
Servo Operating Voltage: 4.8 - 6.0V
Servo Operating Voltage: 4.8 - 6.0V
Product Height: 1.17" (30 mm)
Product Length: 0.91" (23 mm)
Product Weight: 0.46oz (12.9g)
Product Width: 0.47" (12 mm)
Bushing Or Bearing: Bearing
Wire Gauge: 22 AWG
Deadband: 2
Programmable: No
Servo Type: Digital
Gear Type: Metal
Servo Size Category: Mini and Micro
Servo Size Category: Mini and Micro
Application: 250 - 450 size heli (cyclic)
