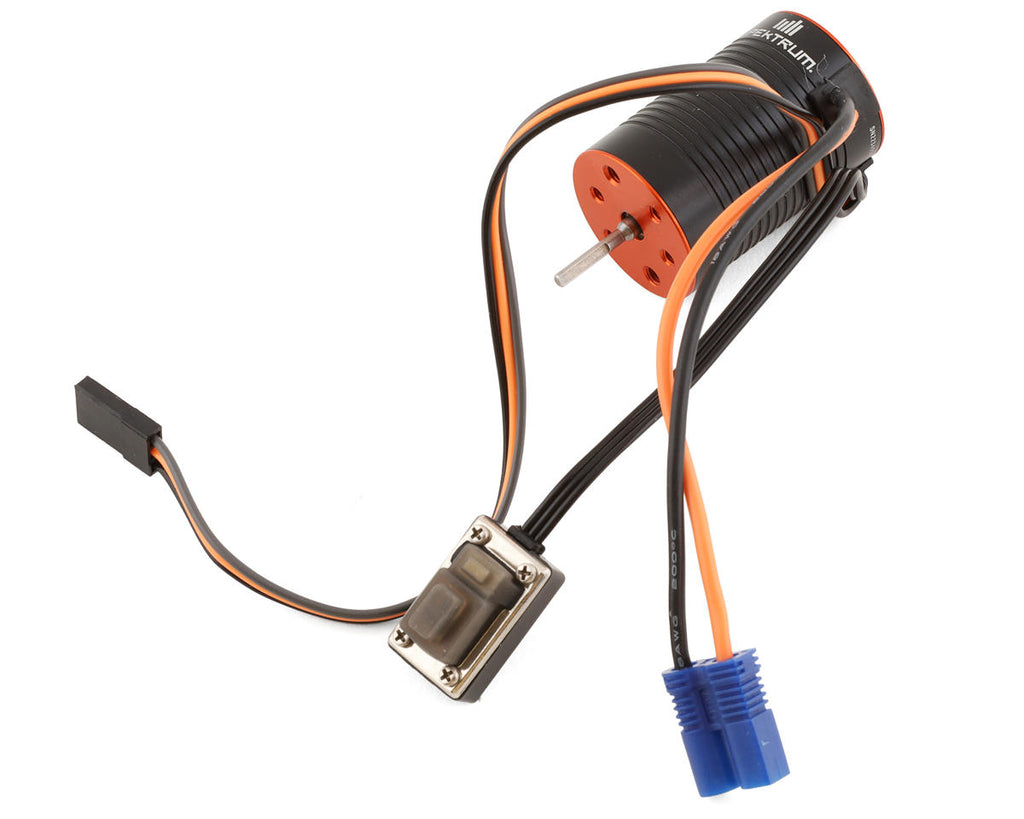

This is the Spektrum RC Firma Brushless Motor/ESC 2-in-1 Combo. This powerful brushless combo is an excellent drop in brushless system for Mini vehicles such as the Losi Mini-T, Mini-B and Mini JRX2. This system contains a high-torque and high speed 6000kv brushless sensorless motor that is designed for bashing and sport racing applications. The motor features the same basic dimensions and mounting patterns as industry-standard, 1/16 to 1/18, 280-size brushed motors, making it easy to install and setup. These motors also offer high performance over a longer lifetime with little to no maintenance.
Features:
- Drop-in brushless upgrade for Losi Mini-T, Mini-B and Mini JRX2
- Integrated 20 amp ESC
- 2-in-1 design reduces space requirements
- EC2 connector that is compatible with popular battery types used in 1/18th scale models
- Perfect upgrade for brushed 280 motors with the same diameter
- Industry standard mounting hole patterns
- High torque and high RPM 6000kv Brushless Sensorless motor
- Counter-clockwise operation only
- Easy programming via one-button interface
- High-quality construction with ball bearings
- Hardened steel 2mm motor shaft
- Low maintenance design
- Easy installation
Specifications:
Input Voltage: 2S LiPo
RPM/Volt (Kv): 6000
Motor Type: Brushless
Maximum Burst Current: 40A
Maximum Continuous Current: 20A
Connector Type: EC2
BEC: Yes
BEC Type: Switching
BEC Type: Switching
BEC Continuous Current: 1A
Motor Design: Inrunner
Motor Design: Inrunner
Reverse: Yes
Forward: Yes
Auto Cutoff: Yes
Overload Protection: Yes
Shaft Diameter: 0.07" (2mm)
Outer Diameter: 0.94" (24mm)
Product Length: 1.41" (36mm)
Includes:
Outer Diameter: 0.94" (24mm)
Product Length: 1.41" (36mm)
Includes:
- (1) Firma Brushless Motor/ESC 2-in-1 Combo (6000Kv)
- (1) Product Manual
