Power HD Standard Coreless Motor Titanium & Steel Gear Servo PHD-WP-23KG

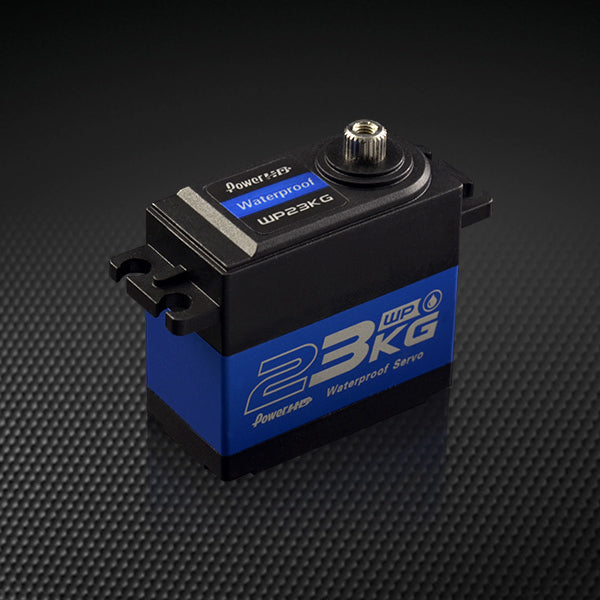

The Power HD WP-23KG (HD-WP-23KG) is a waterproof, coreless, digital servo engineered for dependable performance. Delivering up to 23.0 kg-cm of torque with a 0.12s transit speed at 6.0V, it pairs a titanium/steel gear train with dual ball bearings for smooth, durable operation. Running on 4.8€œ6.0V DC and weighing 75 g, its compact 40.7 x 20.5 x 38.5 mm case helps it fit neatly where space is tight, making it a strong option when you need a high-torque, metal-gear 6V servo with consistent response. Specification - Torque - (4.8V): 18.0 kg-cm (250.0 oz/in) - (6.0V): 23.0 kg-cm (319.4 oz/in) - Speed: 0.14 sec (4.8V)  š 0.12 sec (6.0V) - Operating Voltageï¼Å¡4.8 ~ 6.0 DC Volts - Weight: 75 g (2.65 oz) - Bearing Typeï¼Å¡Ball Bearing x 2 - Motor Typeï¼Å¡Coreless Motor - Gear Typeï¼Å¡Titanium & Steel - Operating Temperatureï¼Å¡-10„ƒ~60„ƒ - Working frequencyï¼Å¡1520s / 333hz - Sizeï¼Å¡40.7 x 20.5 x 38.5 mm ( 1.60 x 0.80 x 1.49 in)
