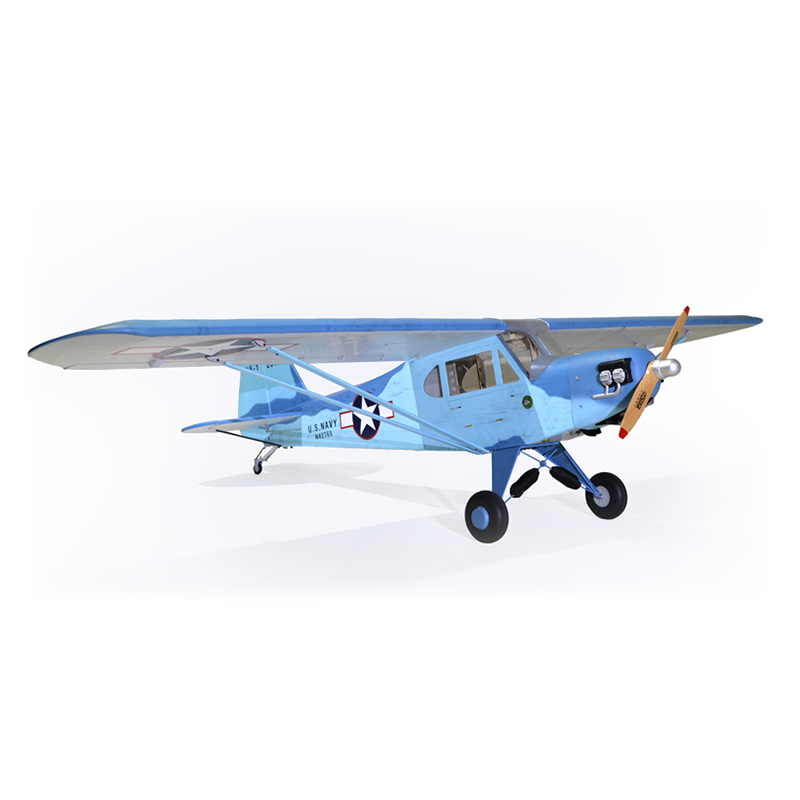

Phoenix Model Navi Piper J3 20cc ARF, PHN-PH221
The original Piper J-3 Cub was a popular aircraft in the 1930s and was responsible for training 80% of United States military pilots by the end of World War II. This Piper J3 Cub replica from Phoenix Model replicates the classic lines and superb flight characteristics of the original icon. It is an extremely light laser-cut all-wood construction and gives you the option of gas-powered or electric-powered flight.
Features
- Superb flying characteristics, plus an accurate scale outline
- Functional panel flaps
- Two-pieces Wing - Making assembly and transport super convenient
- Hard points for mounting the scale float kit (sold separately) are already built into the fuselage
- Quick-connect, streamlined wing struts
- Operational cockpit side-doors
- Designed for compatibility with both GP and EP flight
- Extremely lightweight laser-cut all-wood construction
- Cockpit and instrument panel included
- High-quality hardware package included
Specs
- Experience level:
- Intermediate
- Plane type:
- Scale Civilian
- Wingspan:
- 2300mm (90.5 in)
- Length:
- 1541mm (60.6 in)
- Flying weight:
- 6100-6500 g
- Wing area:
- 78 dm2
- Wing loading:
- 78.2 g/dm2
- Wing type:
- Naca airfoils
- Spinner size:
- Scale type (not included)
- Radio:
- 6 channel minimum (not included)
- Servo:
- 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery:
- 6.0V 2400/2600mAh NiMH (not included)
- Servo mount:
- 21mm x 42 mm
- Propeller:
- suit with your engine
- Engine:
- 1.20 two stroke glow engine/ 20-26cc two-stroke gas engine (not included)
- Motor:
- Brushless outrunner 2000-2400 W, 450 KV (not included)
