Specifications
| Width | 2.4" (70mm) center of mounting holes at mounting plate |
| Oil Type & Content | 2-cycle oil at 50:1 mix ratio |
| Bore | 1.091" (27.7mm) |
| Cylinders | One, Single |
| Plug Type | G5 |

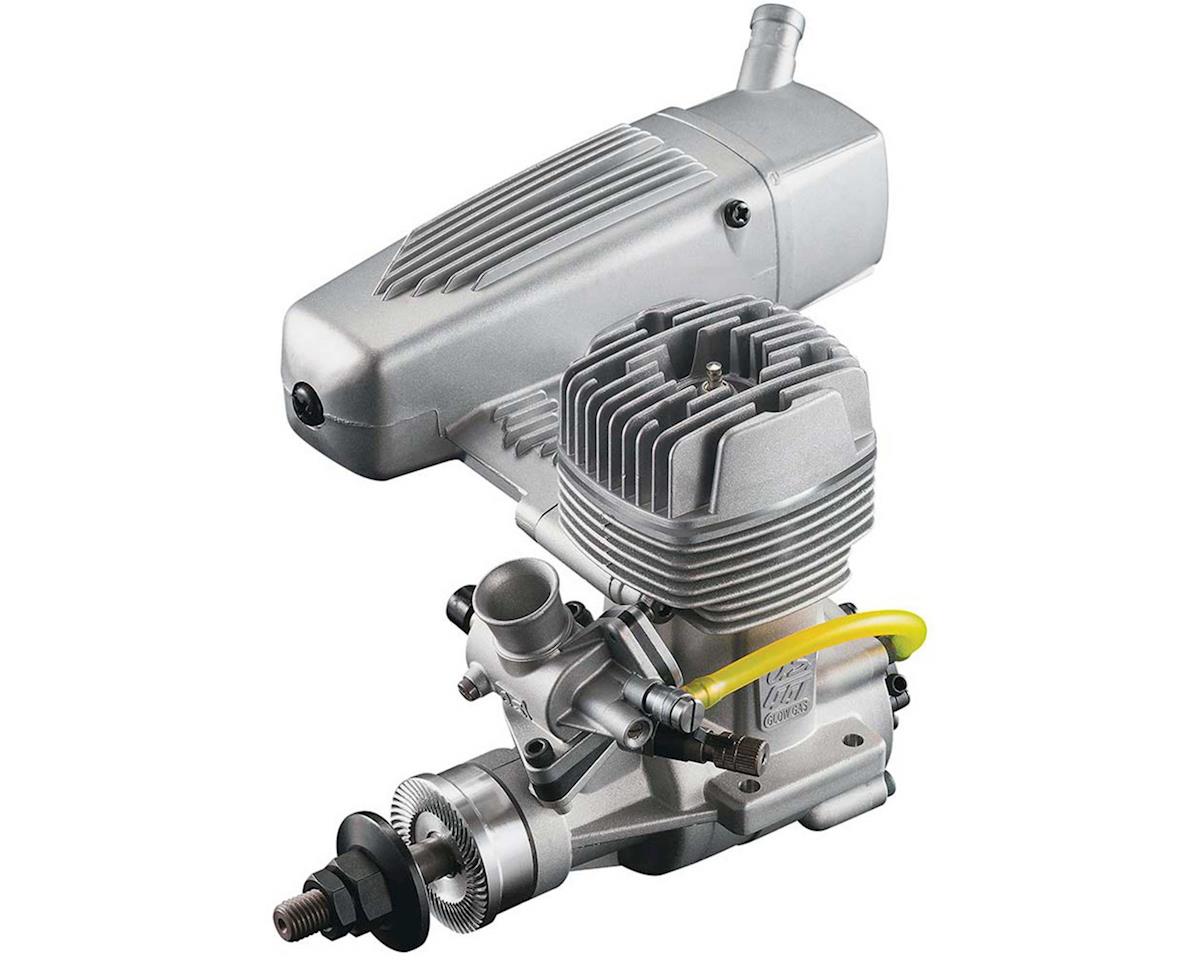

| Type | 2-cycle gasoline airplane engine |
| Crankshaft Type | Threaded |
| Starter Type | Hand Held Starter |
| Carb Type | O,S, 61H w/PD-08 pump system |
| Prop Range | 13 x 8-11 - 15 x 6-8 |
| Displacement | 0.912 cu in (14.95 cc) |
| Engine (Only) Weight | 21.5 oz (610 g) |
| Total Weight | 27.7oz (788g) |
| Height | 6.1" (156.1mm) from bottom of mounting tab to muffler outlet |
| HP | 2.35 PS, 2.32 HP @ 15,000RPM |
| Crankshaft Threads | UNF5/16-24 |
| Muffler Weight | 6.28 oz (178g) |
| Length | 6.1" (156.2mm) from carb to front bearing |
| Muffler Type | 2-piece aluminum |
| Recommended Fuel | 87 - 93 octane gasoline |
| Stroke | 0.976" (24.8mm) |
| Ignition Weight | 3.70 oz (105 g) |
| RPM Range | 2,000 - 11,000 |
