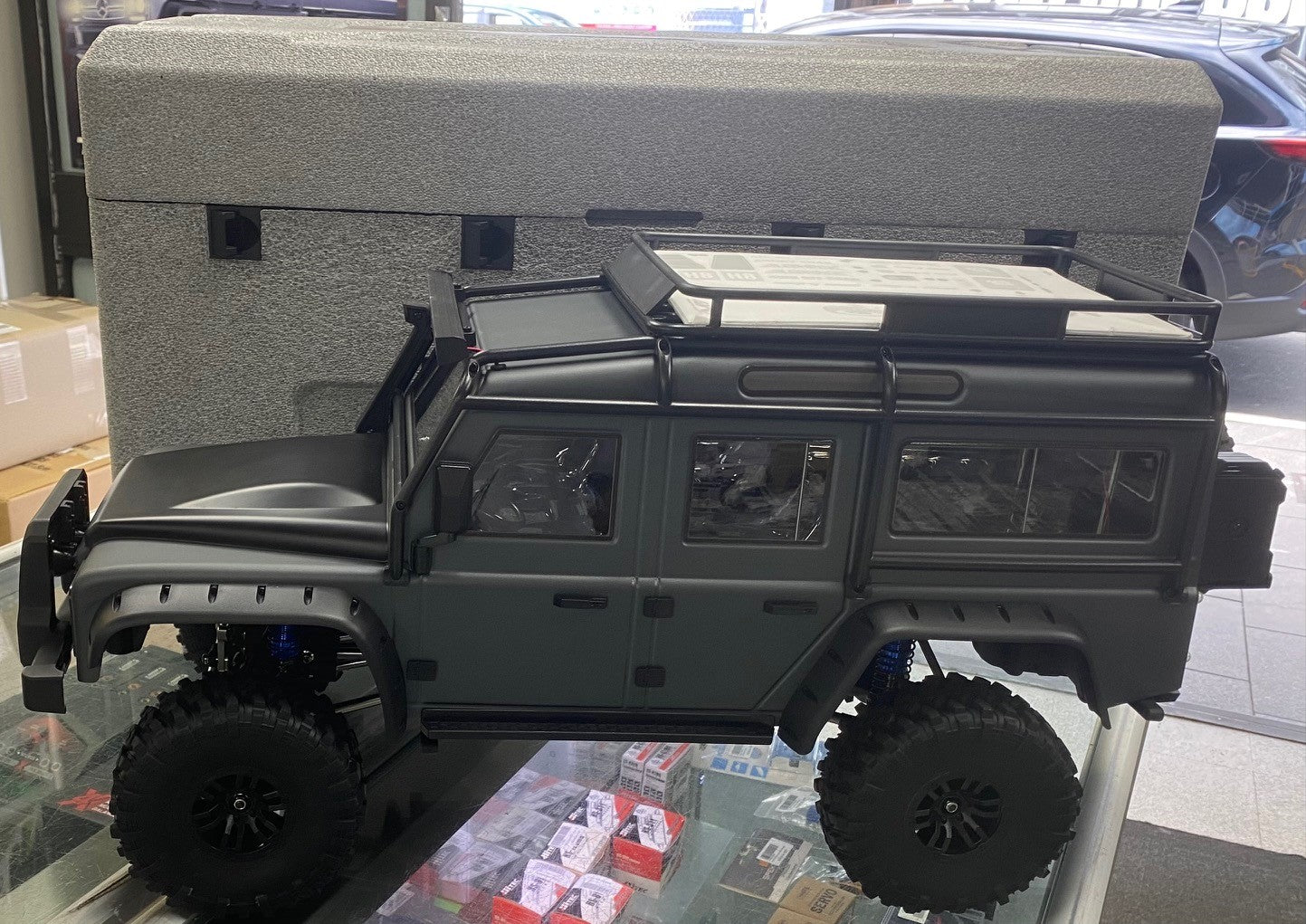

From MJX comes the 1/8 scale ALLROCK H8H RC Crawler
MJX's brand new ALLROCK series large scale RC Crawler/Climbig cars are packed full of features, equipped with the FOC vector control system code-named "Angry Snail F8" launched by Snail Studio and Magnetic encoding sensing brushless power kit. Boasting an IP67 water and dust protection rating adn compatible with both 2S and 3S batteries.
80A FOC Vector Control ESC
Featuring vector control, high effiiciency, power saving, low torque ripplem low motor noise, fast deceleration and braking and supporting dual operation modes. It supports both the classic direct forward reverse (climbing) mode and the forward reverse with braking (normal) mode, meeting two application needs.
Intelligent torque output and speed closed-loop control
Whether climbing or descending the ESC will automatically increase the output torque to overcome any resistance and help move smoothly over the slope or reduce the torque to stabalize the vehicle speed for seamless descent.
Powerful built-in BEC and Magnetic encoded inductive brushless motor
With it's powerful built-in BES with a maximum 13A output current and a 6V/7.4V switchable output voltage makes it easy to drive all kinds of standard servos and high-voltage servos, as well as peripheral electrical equipment (lamp sets, winches, etc.).
With Bluetooth app connectivity adjusting parameters on the the fly has become even easier, from adjusting Drag Brake, Neutral Range, Real time battery monitoring and Motor & ESC temperatures.
The buit-in chip magnetic encoding sensor, which helps improves the accuracy by 60 compared to the hall sensor commonly used in ordinary inductive brushless motor. The three-phase signal consistency always outputs pure and accurate rotor position signal.
Also Features
Boasting an IP67 rating for both Dust and Water protection you can play to your hearts content. the ALLROCK also features a professional servo standardly equipped and rated at 35kg steering servo with a metal gear and shell, a mechanical metal gear 2-speed transmission as well as front and rear axle differential lock.
Powder metallurgy gearsm steel transmission shaft and stainless steel connecting rods throughout the entire vehicle with CNC integrated aluminium-alloy car beams, and aluminium-alloy oil-filled shock absorbers to handle anything you throw at it.
Mounted with 140 LED light beads, allowing the driver to independently control eaech light group and a front and rear battery compartment so you can put the weight where you need it on the fly with out any tools or additional parts.
Technical Data:
- Scale 1/8
- 35kg metal servo
- Magnetic Encoding Sensing Brushless power kit
- 80A FOC Vector Control ESC
- Front and rear locking Differentials
- Stainless steel connecting rods and steel transmission shaft
- CN alloy car beam
- Aluminium-alloy oil-filled shocks
- Front and Rear battery compartments
- IP67 dust and water protection
- Measurements:
- Wheelbase 373mm
- Body Measures: 680 x 298 x 325 mm

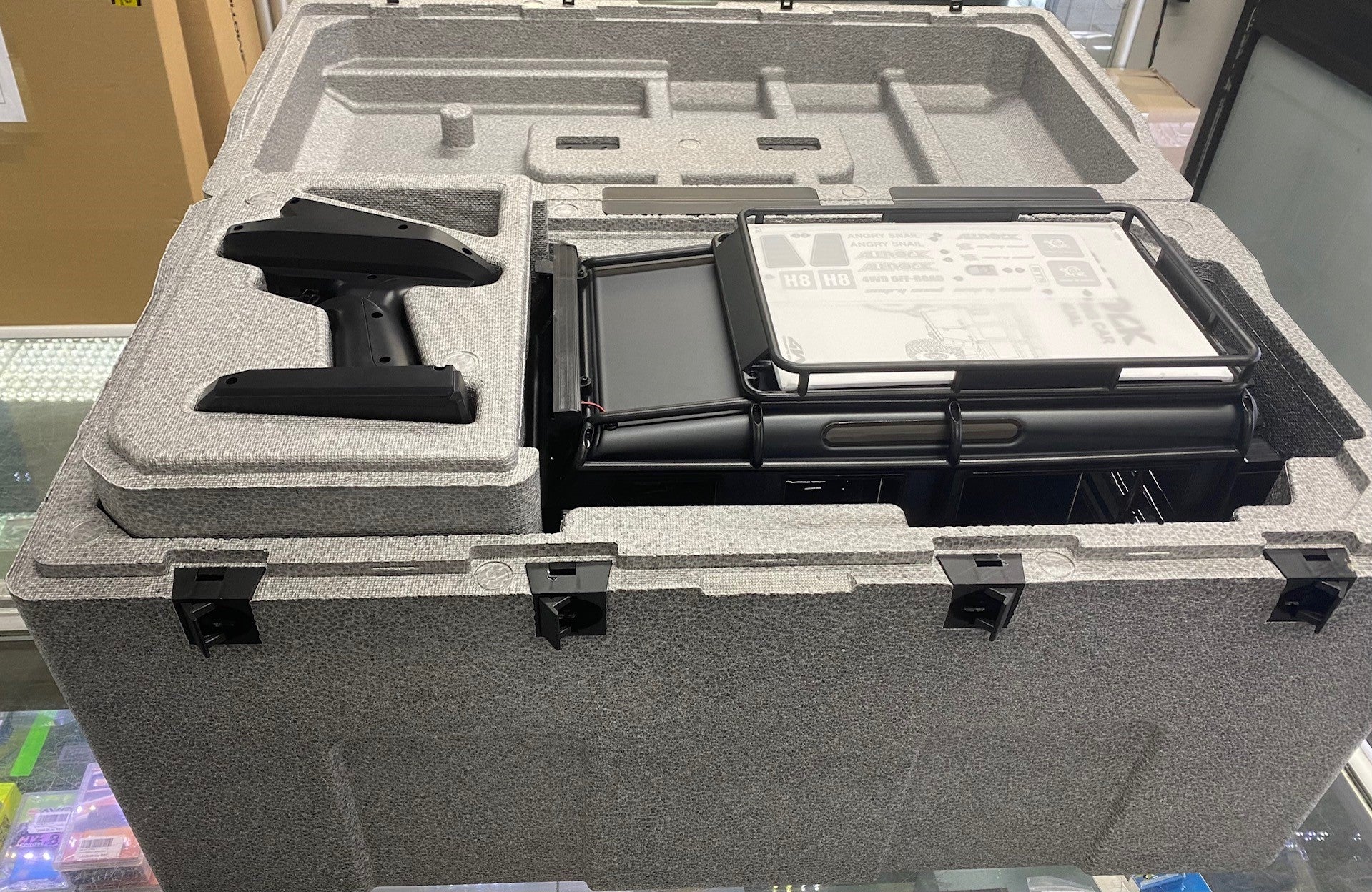

What's in the Box:
- 2.4 GHz 1/8 RC Crawler
- 8 channel 2.4 GHz remote control
- EPP storage case
- MJX user manual
Needed to Complete:
- Compatible Battery and Charger
