The Kyosho KC10 Toyota Land Cruiser 60 Body Type 2 combines highly detailed scale styling with a purpose-built 1/10 electric crawler chassis. Featuring an officially licensed Toyota Land Cruiser 60 body and Kyosho's newly developed KC10 platform, this Readyset is designed for realistic trail driving, technical crawling and off-road exploration.

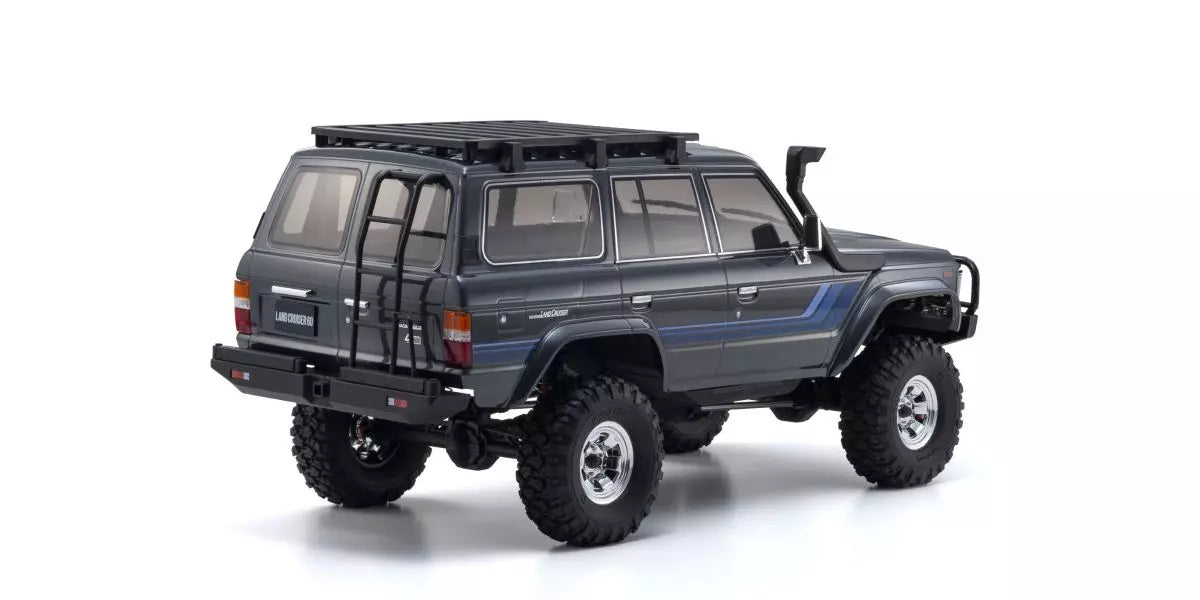

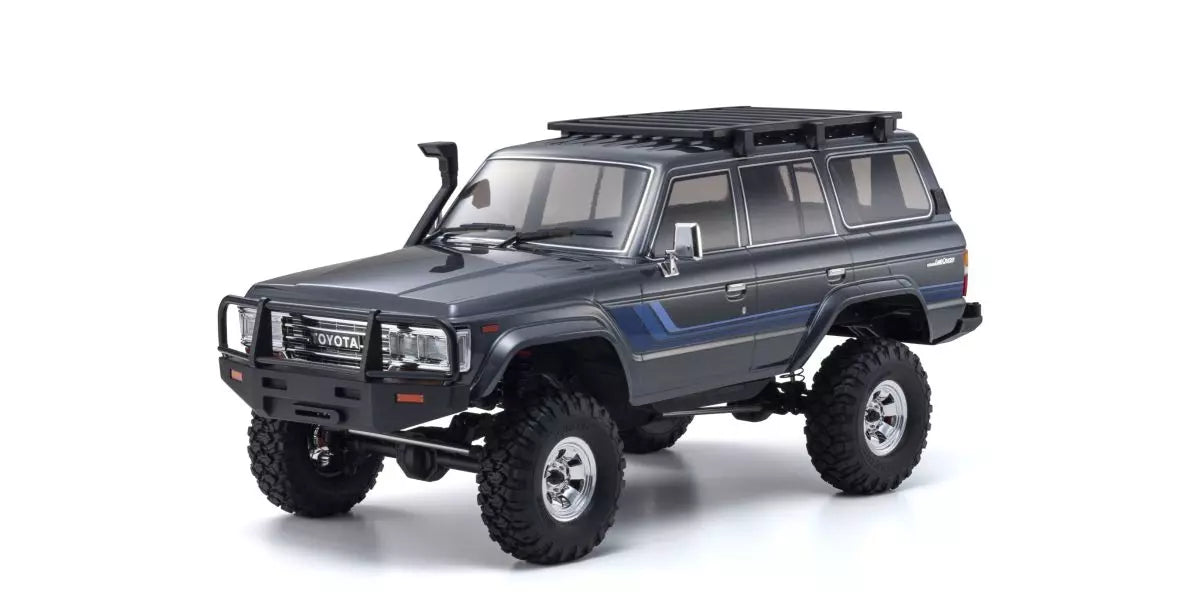

Body Type 2 recreates the later Land Cruiser 60 appearance with square headlights, door mirrors, overfender styling and a snorkel. Separate scale components including the roof rack and rear ladder add further realism, while a clipless body mounting system eliminates visible body pins and provides convenient chassis access.

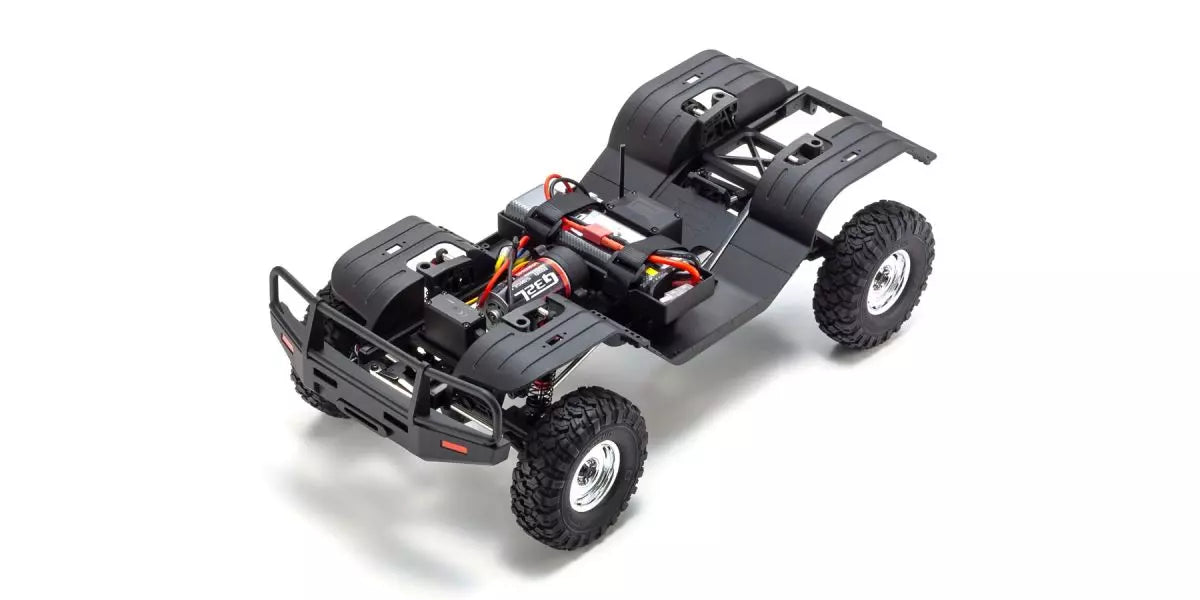

Underneath, the KC10 uses a pressed-steel ladder frame, shaft-driven 4WD, solid axles and a 3-link front / 4-link rear suspension system. CNC-machined steel hypoid ring and pinion gears, locked spool differentials and a low-geared drivetrain provide the traction and control required for demanding crawling terrain.
The gearbox is designed for future tuning with optional 2-speed and DIG systems. In standard form the transmission operates in low gear with DIG disabled. Installing the optional CLW001 2-Speed Kit enables high gear, while the optional CLW002 DIG Kit allows the rear wheels to be locked while maintaining front-wheel drive for extremely tight turning manoeuvres.
Features
- Official Toyota Land Cruiser 60: Highly detailed licensed body recreates the iconic full-size 4WD
- Body Type 2 Styling: Later Land Cruiser 60 appearance with square headlights, door mirrors, overfenders and snorkel
- KC10 Crawler Chassis: Purpose-designed 1/10 platform developed for scale trail driving and technical crawling
- Readyset Configuration: Factory assembled with body, motor, electronics and radio system installed
- Steel Ladder Frame: Press-formed steel main frame provides strength and chassis rigidity
- Shaft-Driven 4WD: Delivers dependable power to the front and rear solid axles
- Locked Differentials: Front and rear spool configuration provides consistent traction while crawling
- CNC Steel Hypoid Gears: Precision-machined ring and pinion gears provide durable and smooth drivetrain operation
- 3-Link Front Suspension: Front multi-link system with lateral rod provides articulation and realistic axle movement
- 4-Link Rear Suspension: Long-travel rear suspension supports stable articulation over uneven terrain
- Oil-Filled Shocks: Large-capacity dampers provide controlled suspension movement and threaded spring adjustment
- Full Ball Bearings: High-precision bearings reduce drivetrain friction for smooth operation
- 550-Size 32T Motor: Kyosho G32L brushed motor delivers strong low-speed torque for crawling
- 15kg Steering Servo: High-torque metal-gear servo provides steering power for demanding trail conditions
- 1.9 Inch Beadlock Wheels: Three-piece crawler wheels provide secure mechanical tyre retention
- Soft Compound All-Terrain Tyres: 110mm crawler tyres provide traction across rocks, dirt and trail surfaces
- Clipless Body Mounting: Eliminates exposed body pins for cleaner scale appearance
- Quick Chassis Access: Front quick-release system simplifies battery and chassis access
- Scale Roof Rack and Ladder: Separate body accessories add realistic Land Cruiser detail
- Inner Fenders: Moulded inner fenders improve scale appearance while helping shield chassis components from debris
- Optional LED Compatibility: Body includes light buckets for compatible optional Kyosho lighting
- 2-Speed Ready: Optional CLW001 kit enables selectable low and high transmission ratios
- DIG Ready: Optional CLW002 DIG system can lock the rear wheels while driving the front wheels for tight manoeuvring
- Central Battery Position: Main battery mounting location helps maintain balanced chassis weight distribution
- Secondary Battery Mount: Rear sub-battery position provides another weight distribution option
Specifications
- Brand: Kyosho
- Model: KC10 Toyota Land Cruiser 60 Body Type 2
- Manufacturer Part Number: 34801T2
- SKU: KYO-34801T2
- JAN / Barcode: 4548565521463
- Product Type: Electric RC Crawler
- Scale: 1/10
- Completion Level: Readyset
- Chassis: KC10
- Drivetrain: Shaft-Driven 4WD
- Differentials: Locked Spool
- Front Suspension: 3-Link with Lateral Rod
- Rear Suspension: 4-Link
- Motor: Kyosho G32L Brushed
- Motor Size: 550
- Motor Turns: 32T
- Radio: Kyosho Syncro KT-231P+
- Steering Servo: 15kg High-Torque Metal Gear
- Servo Output: 25T Serration
- Compatible Battery: 7.2V NiMH / 2S LiPo
- Battery Connector: S-Type
- Wheel Type: 1.9 Inch 3-Piece Beadlock
- Wheel Hex: 12mm
- Tyre Diameter: 110mm
- Tyre Width: 37mm
- Pinion Gear: 12T
- Spur Gear: 25T
- Spur Gear Module: 0.8
- Low Gear Ratio: 49.1:1
- Optional High Gear Ratio: 21.1:1 with CLW001
- Length: 556mm
- Width Excluding Mirrors: 236mm
- Overall Width: 251mm
- Height: 255mm
- Wheelbase: 317mm
- Front / Rear Tread: 208mm
- Approximate Weight: 3080g with 2S LiPo Installed
- Standard Maximum Speed: Approximately 5km/h
- Maximum Speed with Optional High Gear: Approximately 11km/h
- Maximum Climbing Angle: 50 Degrees
- Maximum Stable Tilt Angle: 38 Degrees
- Approximate Runtime: 80 Minutes with 4000mAh 2S LiPo
- Release Date: July 2026
Includes
- 1 × Kyosho KC10 Toyota Land Cruiser 60 Body Type 2 1/10 4WD Crawler
- 1 × Factory-Assembled KC10 Chassis with RC Electronics Installed
- 1 × Factory-Finished Toyota Land Cruiser 60 Body with Decals Applied

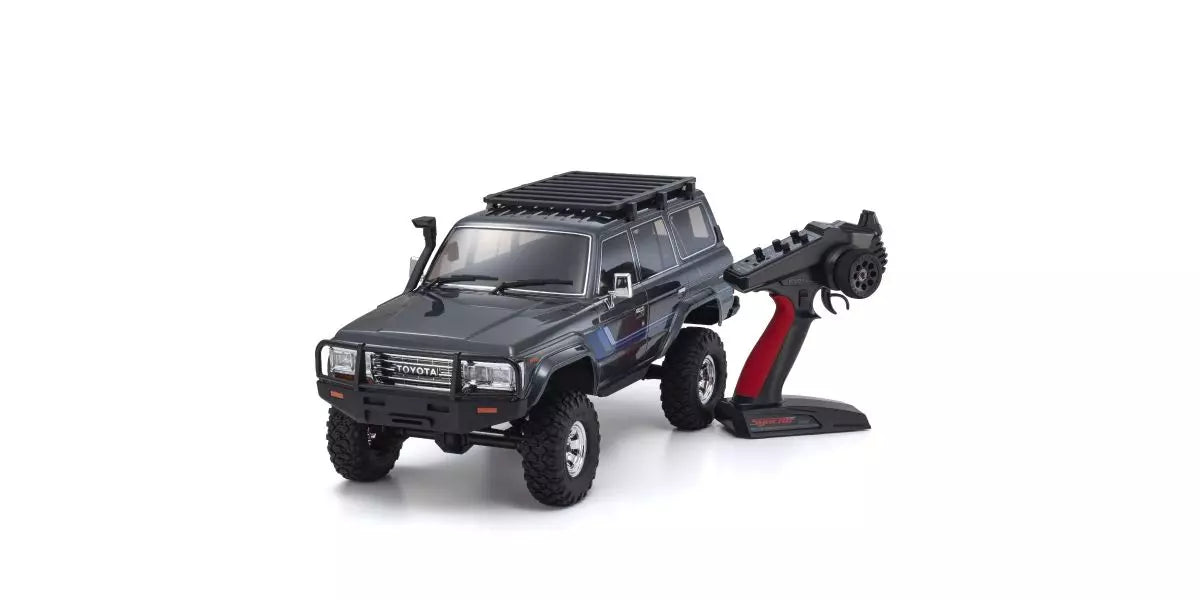

- 1 × Kyosho Syncro KT-231P+ 2.4GHz Transmitter
- 1 × G32L 550-Size 32T Brushed Motor Installed
- 1 × 15kg Metal-Gear Steering Servo Installed
- 1 × 1.5mm / 2.0mm Hex Wrench
- 1 × 4 / 5 / 5.5 / 7mm Cross Wrench
- Setting Adjustment Parts
Needed to Complete
- Compatible 7.2V NiMH or 2S LiPo Driving Battery
- Compatible Battery Charger
- 4 × AA Batteries for Transmitter
