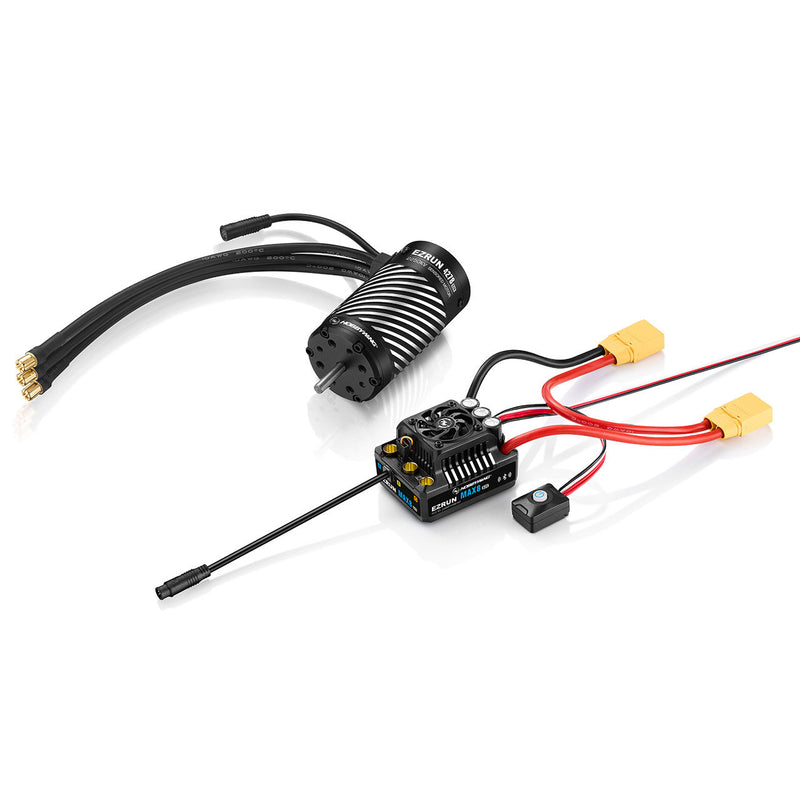

HW38010607 Ezrun MAX8 G2S Combo with 4278SD 2250kV G2R
Product information "Hobbywing Ezrun MAX8 G2S Combo with 4278SD 2250kV G2R"
Combining the EZRun MAX8 G2S with the new 4278 SD G2R motor creates the perfect 1/8 basher combo! The ESC and motor are precisely tuned to work seamlessly together, delivering optimal performance. The integrated overheating protection prevents motor damage and simplifies handling.
Replacement of HW38020476.
Features
- Ultra-powerful BEC 6V/7.4V/8.4V
- 25% more power!
- Multiple protection mechanisms (low voltage, overheating, signal loss, and more)
- Includes turbo timing setting
- Real-time data logging
- Excellent throttle response
- Faster performance with consistent output
- IP-67 standard (dust- and waterproof)
- Easy-to-disassemble motor for maintenance
Technical Data
| ESC | |
| Type: | Brushless Sensored |
| Current (Continuous/Peak): | 160A/1050A |
| Cell Count: | 3-6S LiPo |
| Motor Limit: | 4S LiPo: <= 3000kV 6S LiPo: <= 2400kV (4278 motors) |
| BEC: | 6V/7.4V/8.4V @ 6A |
| Battery Connector: | XT90 |
| Dimensions: | 60x48x40.5mm |
| Weight: | 192g |
| Waterproof: | Yes, IP67 |
| Motor | |
| Type: | Brushless, Sensored |
| RPM: | 2250kV |
| No-Load Current: | 5.3A |
| Cell Count: | 3-6S LiPo |
| Number of Poles: | 4 |
| Length: | 78mm |
| Diameter: | 42mm |
| Shaft Diameter: | 5mm |
| Weight: | 465g |
Included in Delivery
1x Ezrun MAX8 G2S ESC
1x Ezrun 4278SD G2R Motor
