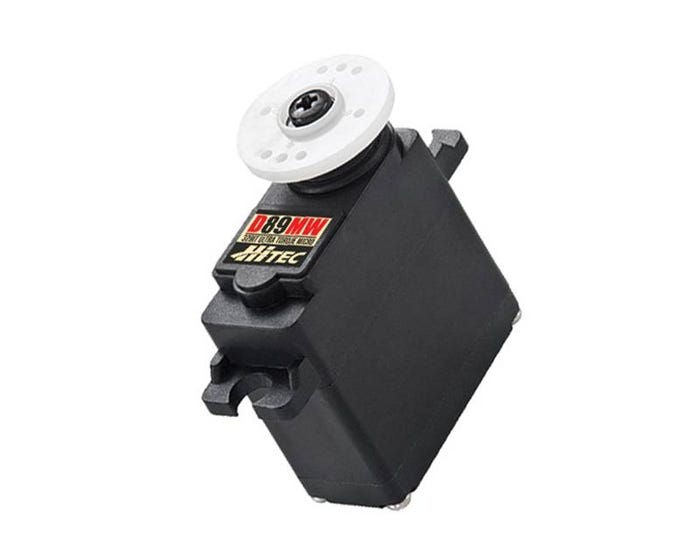

HRC36089 Hitec D89MW Digital Micro Ultra Torque Servo

Hitec D89MW Digital Micro Ultra Torque Servo

• Programmable high respondence digital amplifier with MOSFET drive (requires HITEC programmer HFP-30 or DPC-11)
• Narrow dead band width and high standing torque
• Durable metal gears with dual ball bearings

Operating Voltage Range (Volts DC)

4.8V ~ 7.4V

Speed (Second @ 60°)

0.17 ~ 0.11

Maximum Torque Range oz. / in.

67.02 ~ 103.33

Maximum Torque Range kg. / cm.

4.8 ~ 7.4

Current Draw at Idle

30 mA

No Load Operating Current Draw

300 mA

Stall Current Draw

2,900 mA

Dimensions (Inches)

1.14 x 0.51 x 1.18

Dimensions (Metric)

29.0 x 13.0 x 30.0

Weight (Ounces)

0.88

Weight (Gram)

25

Circuit Type

32bit Programable Digital

Motor Type

Coreless Metal Brush

Gear Material

5 Metal Gears

Bearing Type

Dual Ball Bearing

Output Shaft (type / Ømm)

25 / 6

Case Material

Plastic
