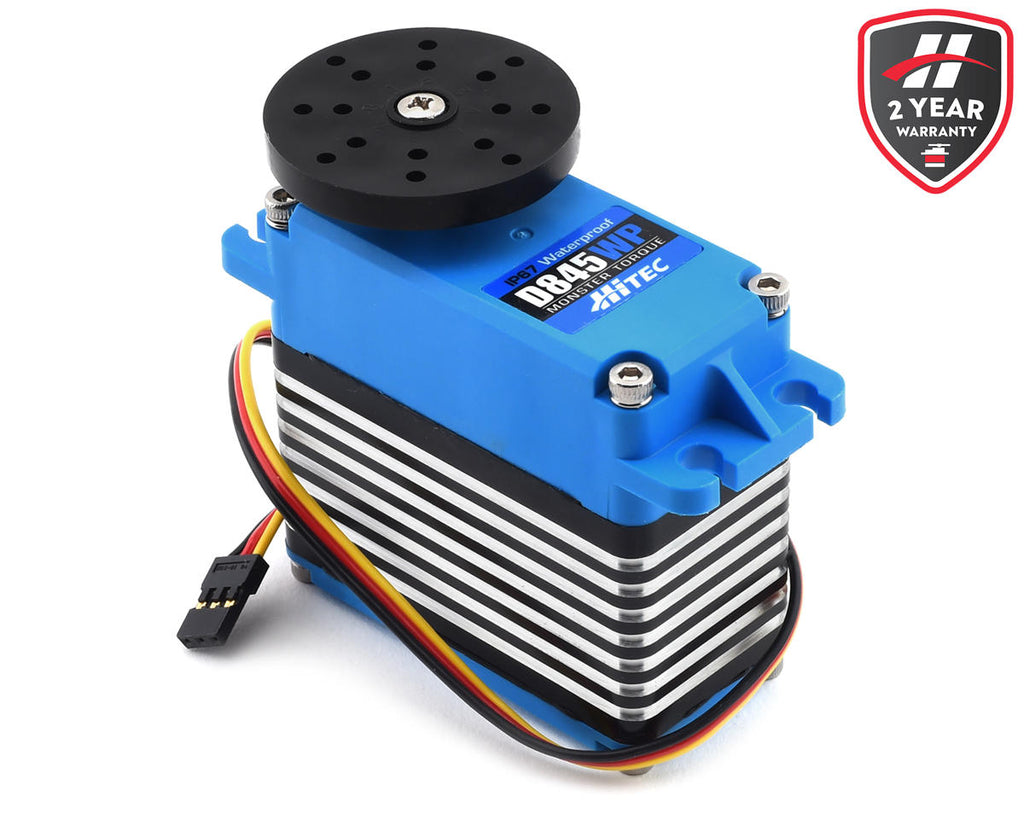

HRC36845 Hitec D845WP Digital HV Large Scale High Speed Programmable Servo

This is the Hitec D845WP Waterproof Monster Torque Steel Gear Large Scale Servo. The steel D-845WP is part of the D-Series servo line. All Hitec D-Series servos have been designed Hitec's cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement.

The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring a 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

NOTE: Losi Desert Buggy XL applications will require shimming at the servo or the servo tray, to raise the servo high enough to clear the chassis.

Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 15-Tooth 8mm Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• IPD 67 Rated Water Resistant and Waterproof Proof Case

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Accessories:

• Steel Gear Set
• Metal / Plastic 1st Gear Set

• Plastic / Aluminum Case Set


Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°): 0.26 ~ 0.21 ~ 0.17
Maximum Torque Range oz. / in.: 454 ~ 566 ~ 698
Maximum Torque Range kg. / cm.: 32.5 ~ 40.5 ~ 50.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 1,600 mA
Stall Current Draw: 10,000 mA
Dead Band Width: 2 µs
Dimensions (Inches): 2.59 x 1.26 x 2.44
Dimensions (Metric): 66.0 x 32.0 x 62.0
Weight (Ounces): 8.0
Weight (Gram): 227.0
Circuit Type: 32bit Programable Digital
Motor Type: 5 Poles Cored Metal Brush
Gear Material: Steel
Bearing Type: Dual Ball Bearing
Output Shaft (type / ’mm): 15T 8mm
Case Material: Plastic / Aluminum
Dust / Water Resistance: IP 67
Connector Gauge (AWG) / Strand Count: 20 / 80

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
