Servo Overview:

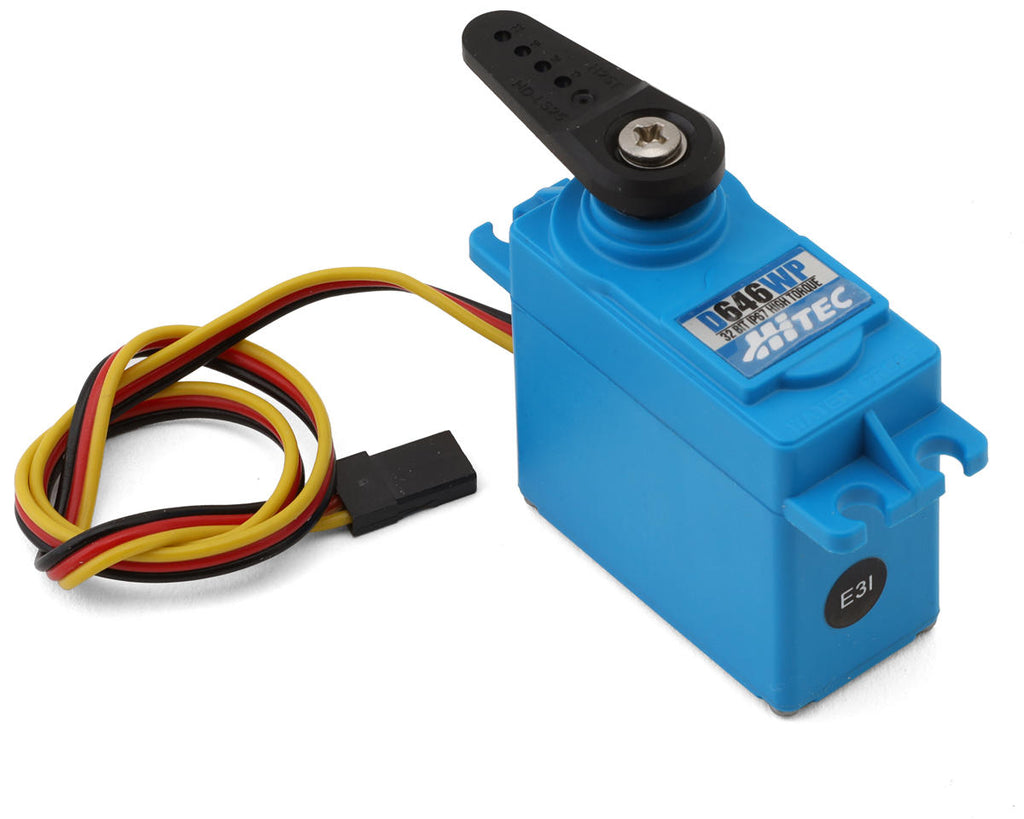

Hitec D646WP Standard Digital High Torque Waterproof Metal Gear Servo. The Hitec D646WP is a robust and high-performance standard digital servo built to tackle various RC applications. With an IP67 waterproof rating, this servo can withstand wet conditions without compromising its performance. Its high-strength metal gears and dual ball-bearing-supported output shaft ensure durability and precision, making it ideal for demanding tasks. Furthermore, this servo provides a selection of customizable features such as EPA (End Point Adjustment), speed, and dead band settings.
Note: Programmable features require the use of the Hitec servo programmer sold separately (HRC44427 or HRC44429).
Features:
- IP67 Waterproof rating
- High strength metal gears
- Dual Ball Bearing-Supported Output Shaft
- Array of programable features
Specifications:
- Operating Voltage: 4.8-7.4V
- Speed:
- @4.8V: 0.24sec/60°
- @6.0V: 0.19sec/60°
- @7.4V: 0.16sec/60°
- Torque:
- @4.8V: 7.5kg-cm (104.72oz-in)
- @6.0V: 9.6kg-cm (134.05oz-in)
- @7.4V: 11.6kg-cm (161.98oz-in)
- Weight: 61.0g (2.15oz)
- Dimensions: 41.8x21x40mm (1.65x0.83x1.57in)
- Spline: 25T
- Motor Type: Brushed
- Water Resistance: IP67
