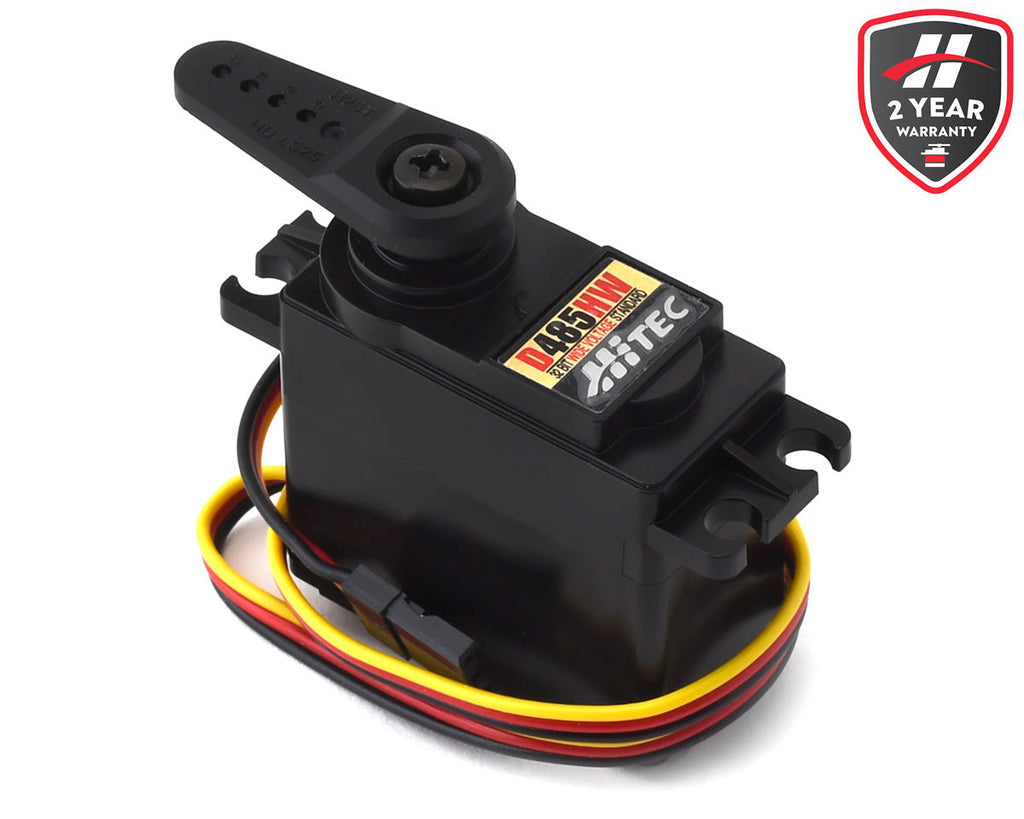

This is the Hitec High Votage D485HW Karbonite Standard Servo. Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.
Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
Speed (Second @ 60°): 0.20 ~ 0.15
Maximum Torque Range oz./in.: 72 ~ 104
Maximum Torque Range kg./cm.: 4.8 ~ 7.4
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 320mA
Stall Current Draw: 1,500mA
Dead Band Width: N/A
Dimensions (Inches): 1.57 x 0.78 x 1.49
Dimensions (Metric): 39.8 X 19.8 X 38.0
Weight (Ounces): 1.59
Weight (Gram): 45.0
Circuit Type: 32 bit Programable Digital
Motor Type: 3 Pole Cored Carbon Brush
Gear Material: MK 1st Gear & 3 Karbonite
Resin Gears
Bearing Type: Top Ball Bearing
Output Shaft (type / mm): 25 / 6
Case Material: Plastic
Dust/Water Resistance: N/A
Connector Gauge (AWG)/Strand Count: N/A
Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
