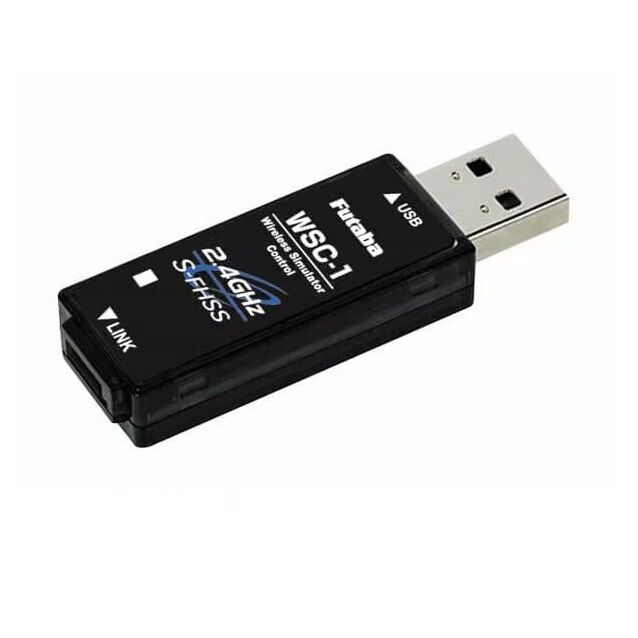

WSC-1–  Wireless Simulator Control

---

The WSC-1 allows for direct wireless communication with simulators and transmitters using the S-FHSS (8 Channel) protocol.

Compatible with the most popular simulators on Windows 8.1/10

Currently all available transmitter from Futaba USA can work with WSC-1 except 3PRKA, T6L (As of May 2021)

---

INTERFACE:
USB 2.0

APPLICABLE OS:
Windows ® 10/8.1

USB CONNECTOR:
USB Series A Connector

DIMENSIONS:
18.2 mm x 56.5 mm x 9.0 mm
0.72 in x 2.22 in x 0.35 in

WEIGHT:
7.5 g
0.26 oz

OPERATING VOLTAGE:
5.0 V ± 0.2 V (USB Bus Power)

MAXIMUM OPERATING RANGE:
About 32.8 ft (10m) without obstacles (Optimum condition)

OPERATING ENVIRONMENT:
Temperature: -10 45 ° C
Temperature: 14 113 ° F
