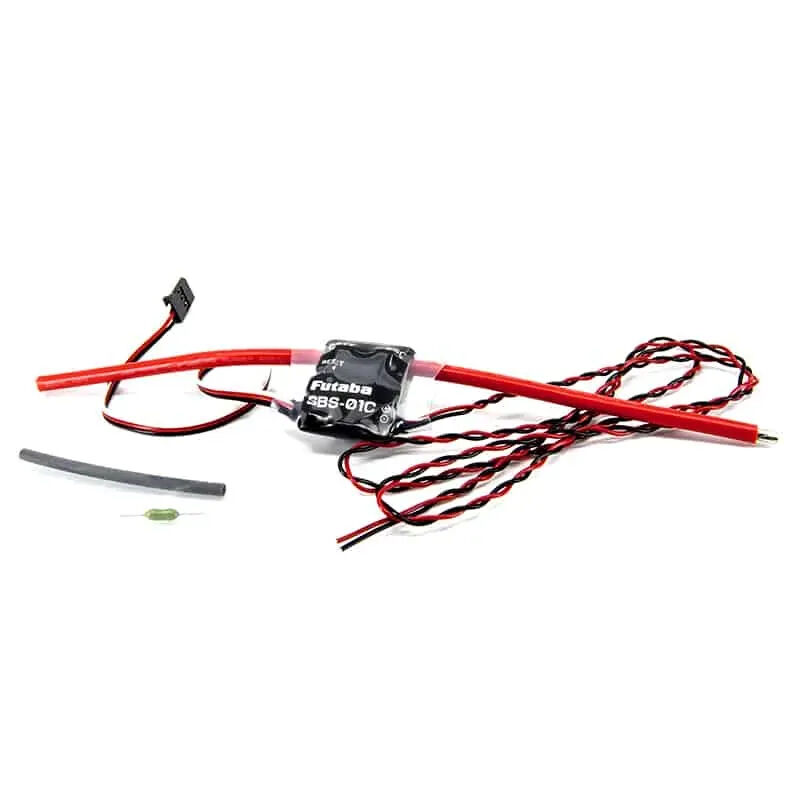

SBS-01C: Current/Capacity Monitoring Sensor

---

Current Sensor

---

Works with the following Futaba Transmitters: T18MZ (World Champion), T18SZ, T18SZ (70th Anniversary), T16IZ, T16SZ, T10PX, T7PX LE, T7PX

For additional compatible transmitters, please refer to the manual.

---

USE:
Electric-power system current and capacity monitoring sensor.

DETECTION ITEM:

CURRENT:
0A ~ 150A  12 Ga Silicone wire

VOLTAGE:
0V ~ 70V

CONSUMPTION CAPACITY:
0 mAh ~ 32767 mAh

WEIGHT:
23 g
0.81 oz

VOLTAGE:
DC 3.7 ~ 7.4V

CURRENT:
*0A ~ 70A
70a ~ 150A (within 10 seconds)
*Measurement is impossible below 1A

– Fuse (can mount in either direction) 1A @ 125VDC
