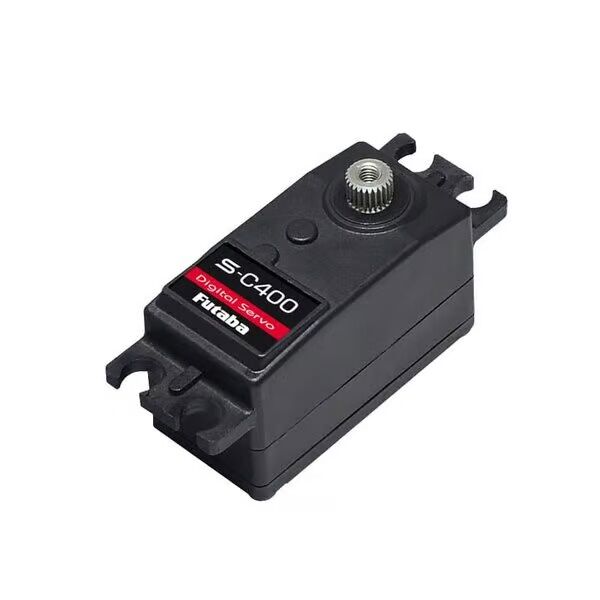

S-C400– S.Bus2 High-Voltage Surface Servo

---

Programmable Car Servo

---

SPEED:
0.10 sec/60 °at 6.0V
0.08 sec/60 ° at 7.4V

TORQUE:
6.6 kgf/cm at 6.0V
91.6 ozf/in at 6.0V
8.0 kgf/cm at 7.4V
111.1 ozf/in at 7.4V

SIZE:
40.5 mm x 20 mm x 25.4 mm
1.94 in x 0.78 in x 1 in

WEIGHT:
43 g
1.51 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.0-8.4V

NO DRY BATTERY USE
