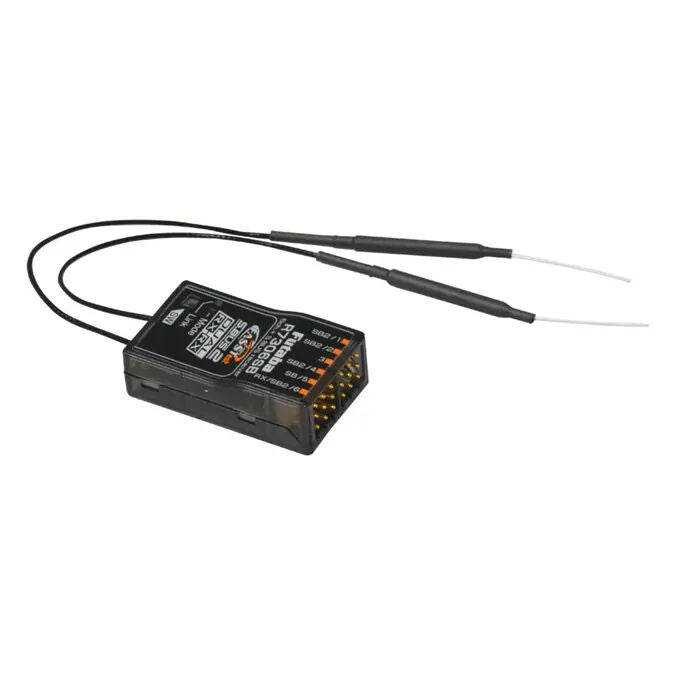

R7306SB– FASSTest 6-Channel/S.Bus/S.Bus2 Port Receiver w/Dual link

---

Bi-Directional Communication System For Aircraft Models

---

SIZE:
22.5 mm x 38.3 mm x 12.2 mm
0.89 in x 1.5 in x 0.48 in

WEIGHT:
8.5 g
0.30 oz

POWER REQUIREMENTS:
DC 3.7V~7.4V

VOLTAGE RANGE:
DC 3.5V~8.4V

Technical Note:

The servo and SBus connections to this receiver are oriented with the Ground pin UP and the signal wire toward the bottom of the receiver!
