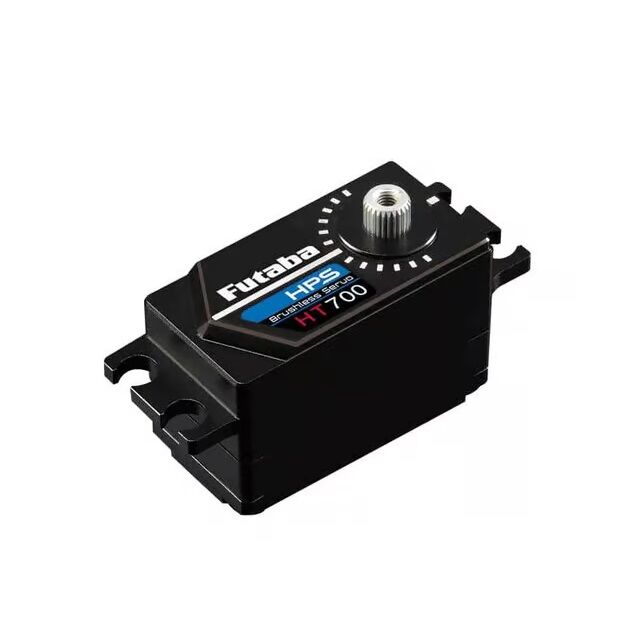

HPS-HT700 S.Bus2 High-Voltage Low-Profile Tail Servo

---

High Performance Tail Servo with Brushless Motor (1520uS/760uS switchable)

---

FEATURES:
Suitable for RC helicopters 500-800 3D/F3C
Programmable/HV Brushless Servo.
Custom New high power Brushless Motor.
Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3 .)
Programmable and compatible with S.Bus and S.Bus2 systems.
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
Upper/middle/bottom: Aluminum Case

Speedï¼Å¡0.045sec/60 °(7.4V) ï¼ 0.05sec/60 °(6.6V)

Torqueï¼Å¡9.6kgf・cm(7.4V) ï¼ 8.6kgf・cm(6.6V)

133.3ozf・in(7.4V) ï¼ 119.4ozf・in(6.6V)

Dimensions/Weightï¼Å¡40.5Ã21.0Ã26.2mm/54g (1.59Ã0.83Ã1.03in)

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY USE
