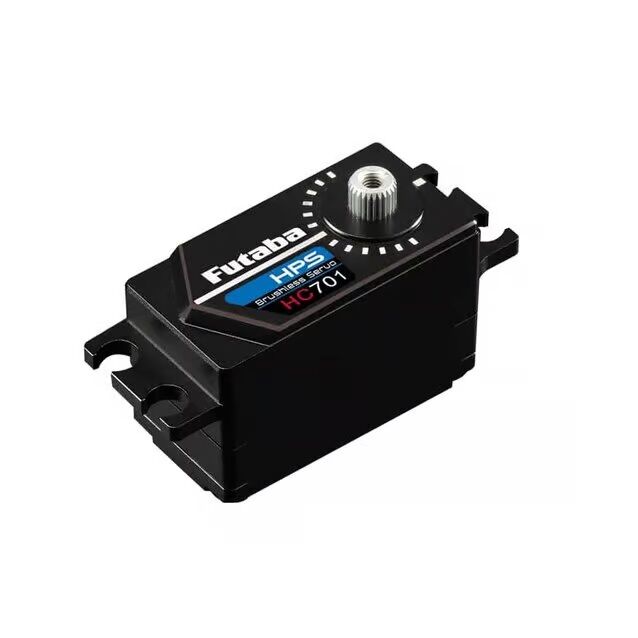

HPS-HC701 S.Bus2 High-Voltage Low-Profile cyclic Servo

---

High Performance cyclic Servo with Brushless Motor (1520uS/760uS switchable)

---

FEATURES:
Suitable for RC helicopters 500-800 3D/F3C
Programmable/HV Brushless Servo.
Custom New high power Brushless Motor.
Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3 .)
Programmable and compatible with S.Bus and S.Bus2 systems.
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
Upper/middle/bottom: Aluminum Case

1520uS
Speedï¼Å¡0.07sec/60 °(7.4V) ï¼ 0.08sec/60 °(6.6V)

Torqueï¼Å¡30.0gf・cm(7.4V) ï¼ 26.5kgf・cm(6.6V)
416.6ozf・in(7.4V) ï¼ 368.0ozf・in(6.6V)

760uS
Speedï¼Å¡0.07sec/60 °(7.4V) ï¼ 0.08sec/60 °(6.6V)

Torqueï¼Å¡27.0kgf・cm(7.4V) ï¼ 24.0kgf・cm(6.6V)
375.0ozf・in(7.4V) ï¼ 333.3ozf・in(6.6V)

Dimensions/Weightï¼Å¡40.5Ã21.0Ã26.2mm/54g (1.59Ã0.83Ã1.03in)

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY USE
