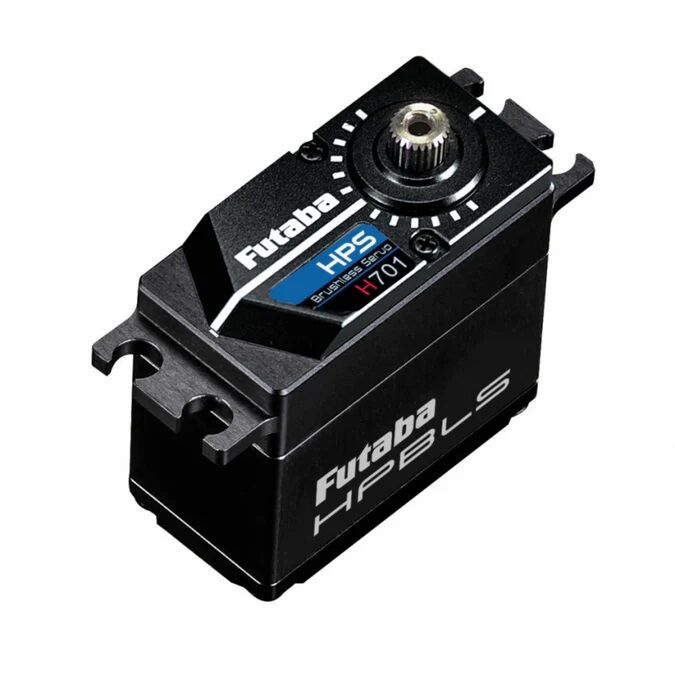

HPS-H701– S.Bus High-Voltage Servo

---

High Performance Servo

---

FEATURES:

• For large helicopters
• Metal 1-3 stage gear
• Titanium end-stage gears
• Upper/middle/lower aluminum case
• S.BUS system

Speed：
  0.07sec/60 °(7.4V) / 0.075sec/60 °(6.6V)

Torque：
  40.0kgf-cm(7.4V) / 36.0kgf-cm(6.6V)

Dimensions/Weight：
 40.5 x 21.0 x 37.8mm / 76g

RATED VOLTAGE:
 DC 6.0V-7.4V

OPERATING VOLTAGE:
 DC 4.8-8.4V

*Dry cell batteries and BEC are not usable.
