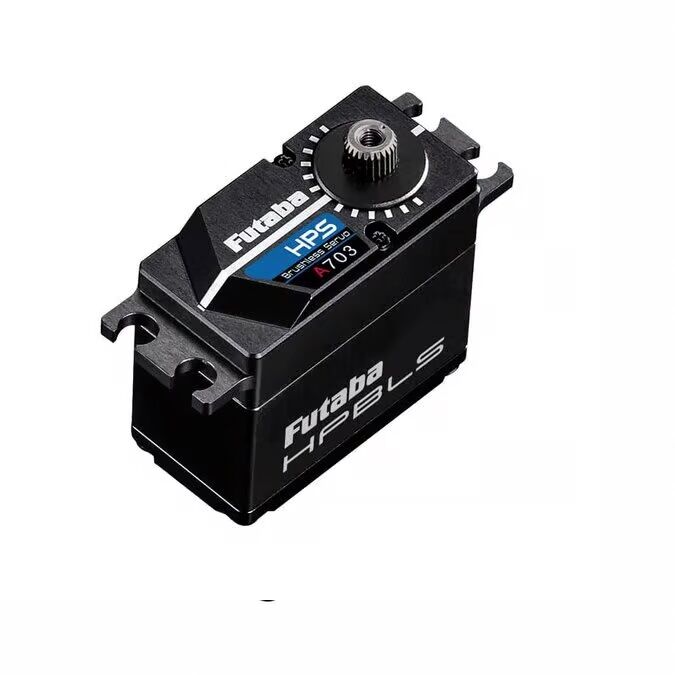

HPS-A703– S.Bus2 High-Voltage Standard Airplane Servo

---

High Performance Servo with Brushless Motor

---

FEATURES:
For all-purpose giant scale airplanes.
Programmable/HV Brushless Servo.
Custom New high power Brushless Motor.
Suggested upgrade for BLS172SV/177SV
Programmable and compatible with S.Bus and S.Bus2 systems.
Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
Final gear material is Stainless Steel.
Upper/middle/bottom: Aluminum Case

SPEED:
0.13 sec/60 °at 6.6V
0.12 sec/60 ° at 7.4V

TORQUE:
61.0 kgf/cm at 6.6V
847.17.4 ozf/in at 6.6V
66.0 kgf/cm at 7.4V
916.61 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 39.4 mm
1.59 in x 0.83 in x 1.55 in

WEIGHT:
82 g
2.89 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY OR BEC USE
