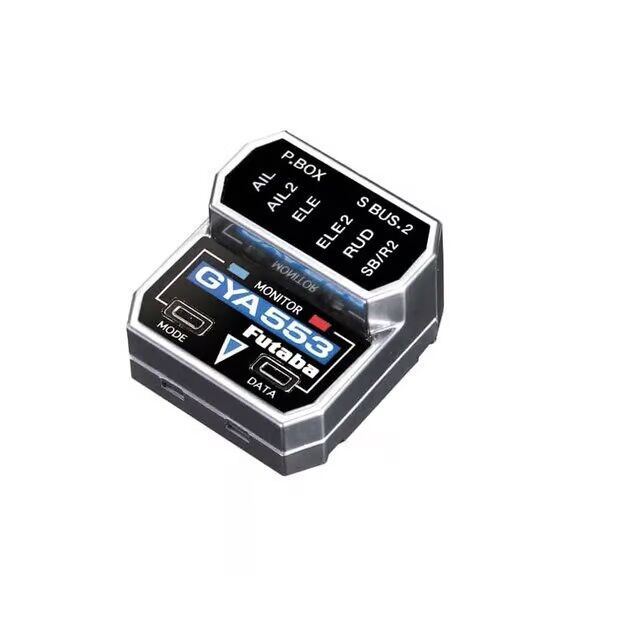

GYA553– 6-Axis Airplane Gyro

---

6-Axis Flight Control for Airplanes

---

FEATURES:
Integrated rate gyro, compact size, and light weight
3-Axis Gyro plus 3-Axis Accelerometer
Auto recovery
  Four flight modes: (Auto recovery/Normal/AVCS/Gyro OFF)
 Supports 2 ailerons, 2 elevators and 2 rudders types

OPERATING VOLTAGE:
DC 3.8-8.4V

SIZE:
28 x 26 x 16 mm
1.10 x 1.02 x 0.63 in

WEIGHT:
8.5 g (0.30 oz)

---

Manual Here:

Example MDL file (T16SZ, T18SZ): AIR_553

Example MDL file T16IZ: T16IZ-553

Example MDL File 32MZ: Samba 553 Gyro



Setup Video with English captions!



Supports Gasoline, Nitro & electric planes.

GYA553 requires a transmitter system of 10 CH or more.

GYA553 requires an S.BUS receiver.
