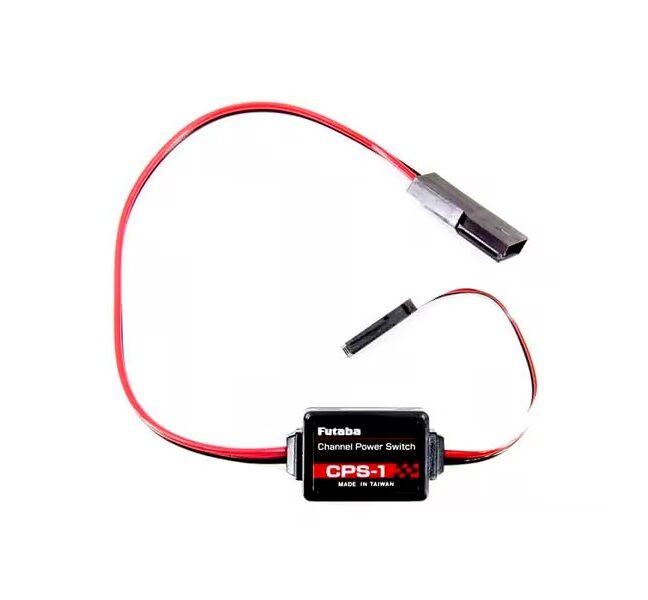

CPS-1-Channel Power Switch

---

SIZE (EXCLUDING PROTRUDING):
16 mm x 22 mm x 7.6 mm
0.63 in x 0.87 in x 0.30 in

WEIGHT:
5.9 g
0.21 oz

CURRENT DRAIN:
10 mA at 6.0V

OUTPUT VOLTAGE:
Depends on the receiver power supply.

OUTPUT CURRENT:
200 mA or less

POWER REQUIREMENT:
Ni-Cd, Ni-MH
4 to 5 cells equivalent Futaba battery

OPERATING TEMPERATURE RANGE:
-10 to 45 °
