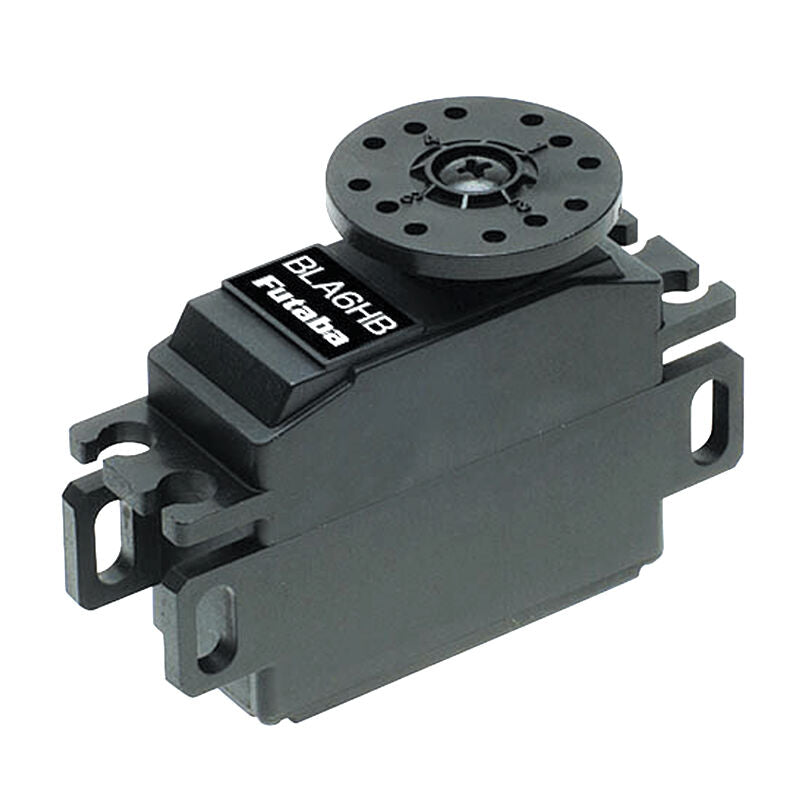

Futaba BLA6HB 8.3kg Industrial Servo (S.Bus) [FUTSBLA6HB]

Brushless Digital Mini Servo

---

• – Metal gear construction with resin casing.
• – Cable length 200 mm
• – Control Signal PWM (N=1,520μS), S.Bus/S.Bus2
• – 3-Pole Connector (Signal, V+, GND)
• – Dimensions 33.0 x 15.0 x 27.1 mm or 1.30 x 0.59 x 1.07 in
• – Weight 28 g or 0.99 oz
• – Torque at 7.4V 7.6 kgf*cm or 106 oz*in
• – Speed at 7.4V 0.10 sec/60 degrees

---

Download PDF
