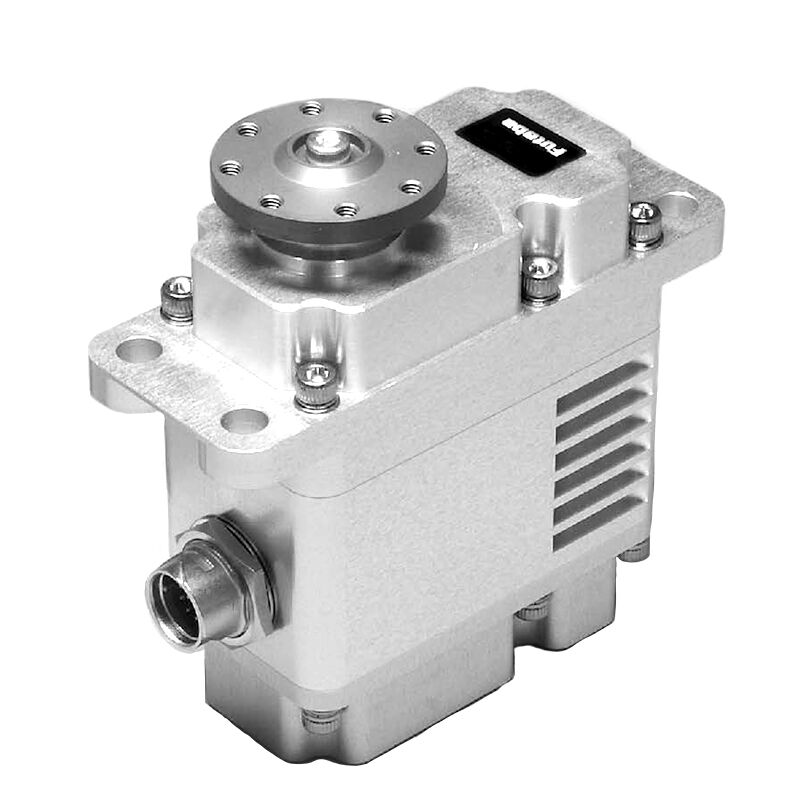

Futaba AJ9DA44 65KG Industrial High Powered Servo [FUTSAJ9DA44]

High Powered Servo

---

• – All metal construction including casing, gears, and output-horn.
• – Output Cable Shielded Removable
• – IP64 level water/dust resistance
• – Dimensions 64.2 x 34.0 x 73.7 mm or 2.53 x 1.34 x 2.90 in
• – Weight 355 g or 12.5 oz
• – Torque at 11.1 V 65 kgf*cm or 6.38 N-m or 902 oz*in
• – Speed at 11.1 V 0.21 sec/60 degrees or 285 degree/sec

---

Download PDF

AJ9DA/LJ9DA series are compatible with the following signal types:

– PWM: Conventional signal for servo of radio control use (ex. Pulse width of 1,520μS = center).
S.Bus/S.Bus2: Futabas original serial signal format.
RS485: Same as Futabas bi-directional protocol for Command type servo for robot.
Do not use each protocol at the same time or the unit will get fatal damage.
Analog DC output for monitoring the rod shaft position. The position can be monitored while powering up.
