Description
The Grumman F9F/F-9 Cougar is a carrier-based fighter aircraft for the United States Navy and United States Marine Corps. Based on Grumman's earlier F9F Panther, the Cougar replaced the Panther's straight wing with a more modern swept wing. Thrust was also increased with the installation of a newer, more powerful engine.

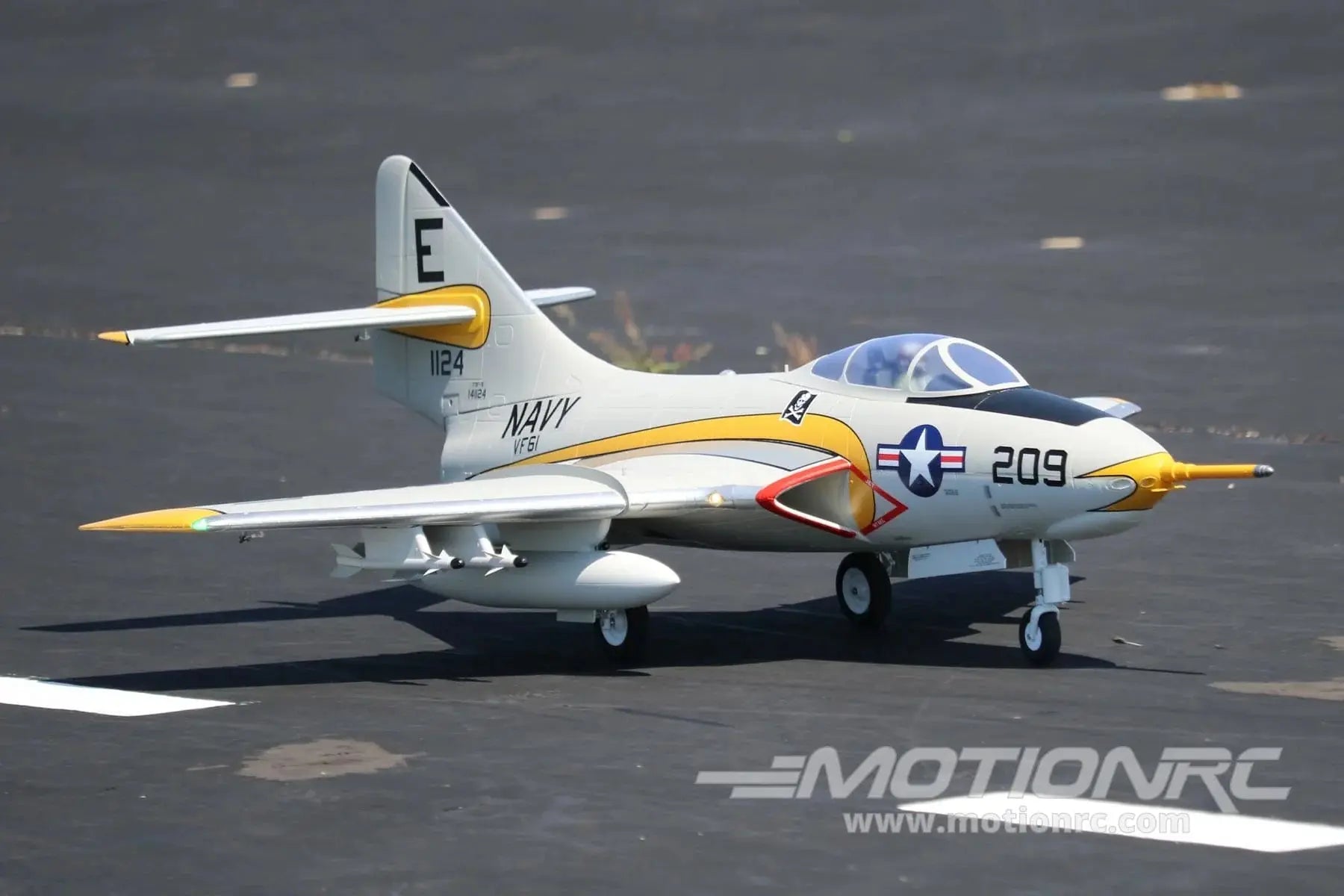

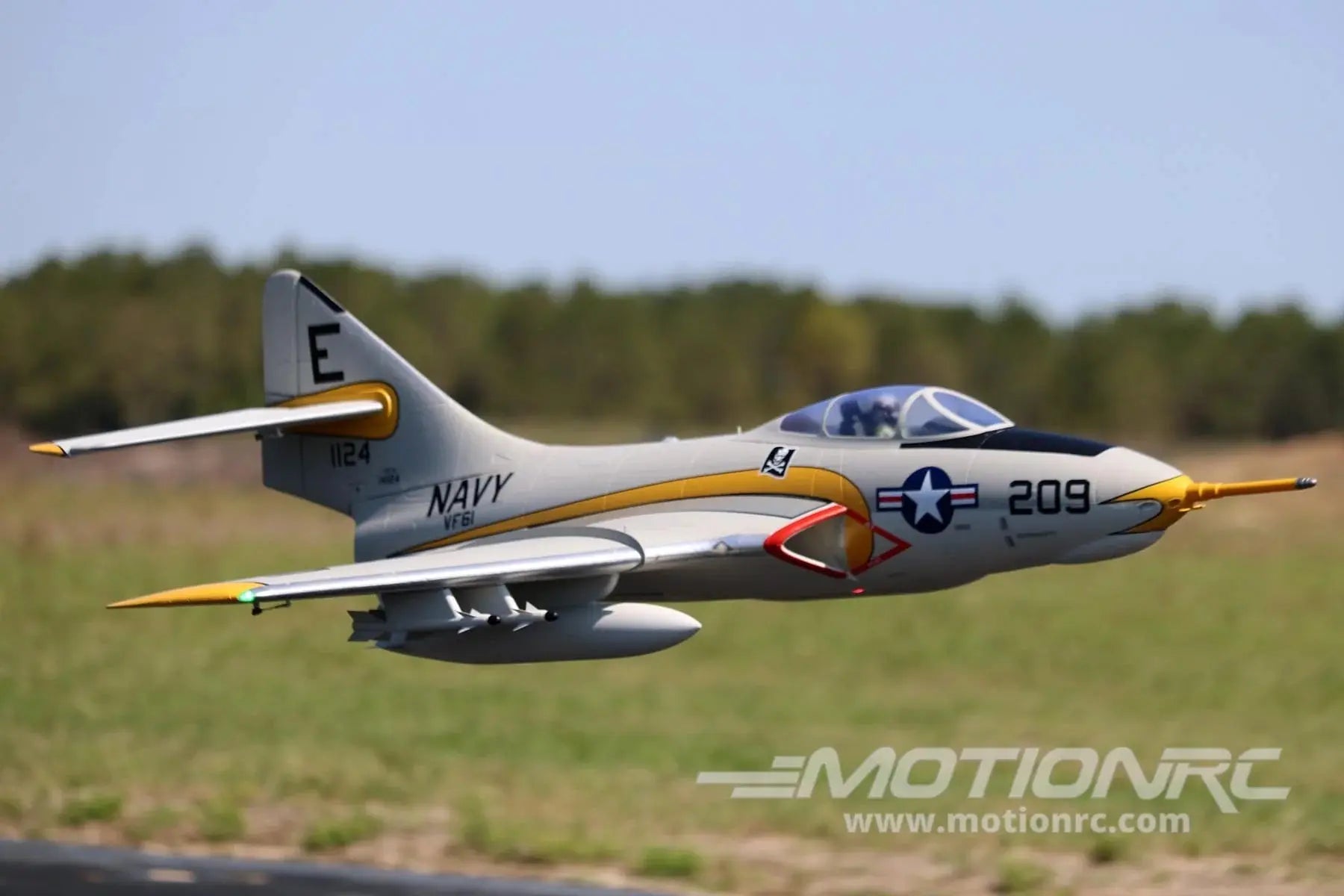

The Freewing F9F-8 Cougar is a next-gen 80mm EDF jet loaded with amenities and details normally reserved for 90mm class jets. This PNP version of the Cougar includes an E52 gyro, ultra-scale CNC landing gear, quick disconnect wings, thrust-reversing ESC, newly designed 12B EDF, scale LED light package, and a new powerful inrunner motor all coming together for a terrific new generation 80mm EDF jet brought to you by Freewing
 |
Quick-Install/Release Wings The Freewing F9F Cougar PNP includes a screwless quick-release wing design that makes field assembly quick and easy. |
 |
Super-Scale CNC-machined Landing Gear The Freewing F9F Cougar comes with the most scale CNC-machined gear ever produced in the 80mm class, accentuating the scale details you will find throughout the model. |
 |
Powerful Performer With the 3658-2150Kv 80mm inrunner motor the F9F Cougar has the power and performance to take you to the type of heights you desire in a new gen EDF jet. |
 |
E52 Gyro Pre-Installed (PNP Only) For the PNP version, an E52 gyro is pre-installed for your convenience. Tackle the skies with the added insuarance a quality gyro can offer you. |
 |
6 LED Lights with Controller The Cougar comes pre-installed with 6 scale LED lights with controller so you can configure your lighting the way you prefer. |
 |
Newly Designed 12-Blade A newly designed 12-Blade EDF was developed for efficiency, improving performance with the smooth jet whine you've come to enjoy in modern EDF jets. |
Features:
- NEW!E52 gyro included in the PNP version
- NEW!Quick-Install/Release wings make assembly at the field quick and easy
- NEW!New, super-scale CNC-machined and painted landing gear (First 80mm jet with ultra scale landing gear)
- NEW!90mm detail level in an 80mm jet - Highly scale details are included on this 80mm jet that are normally reserved for 90mm jets
- NEW!A more powerful 3658-2150Kv 80mm inrunner motor
- NEW!A newly designed 12-Blade EDF for better thrust, sound, and efficiency
- Fully enclosed servo operated landing gear doors
- 10 metal gear servos (the most of any 80mm jet)
- 6 scale LED lights with LED light controller
- 100A Thrust reversing ESC with 7A BEC
Includes:
- Freewing F9F-8 Cougar Super Scale 80mm EDF with Gyro - PNP
- Servos, motor, ESC pre-installed
Requires:
- 7 Channel radio
- 7 Channel receiver
- 6 Cell 22.2V 4000 - 6000 mAh LiPo Battery with EC5 connector
- Minimum 6 Cell battery charger
Product Specifications:
|
Scale |
1/10 |
|
Wingspan |
1050mm / 41.3in |
|
Length |
1436mm / 56.5in |
|
Flying Weight |
~3242g / 114.4oz |
|
CG (Center of Gravity) |
106mm from the leading edge of the wing's root |
|
Power System |
3658-2150Kv Brushless Inrunner Motor |
|
Electronic Speed Control |
100A ESC with EC5 Connector |
|
Propeller / EDF |
80mm EDF with 12-Blade Fan |
|
Servos |
|
|
Landing Gear |
Super-scale CNC-machined and painted landing gear |
|
Required Battery |
6S 22.2V 4000-6000mAh LiPo with EC5 Connector |
|
Required Radio |
7+ Channel |
|
Ailerons |
Yes |
|
Elevator |
Yes |
|
Rudder |
Yes |
|
Flaps |
Yes |
|
Lights |
Yes |
|
Hinge Type |
Nylon |
|
Material |
EPO Foam |
|
Skill Level |
Intermediate |
|
Build Time |
1 Hour |
|
Recommended Environment |
Outdoors |
