Description
This is the 8S version which, as of 10/12/2023, comes with a 90mm 12-Blade EDF 8S Power System with a 4075-1350Kv inrunner brushless motor and a thrust reversing 120A ESC.

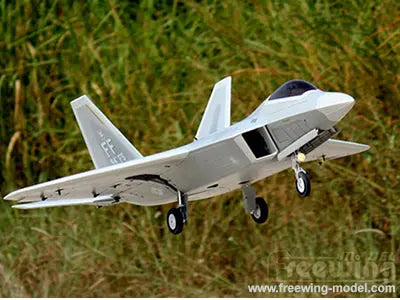

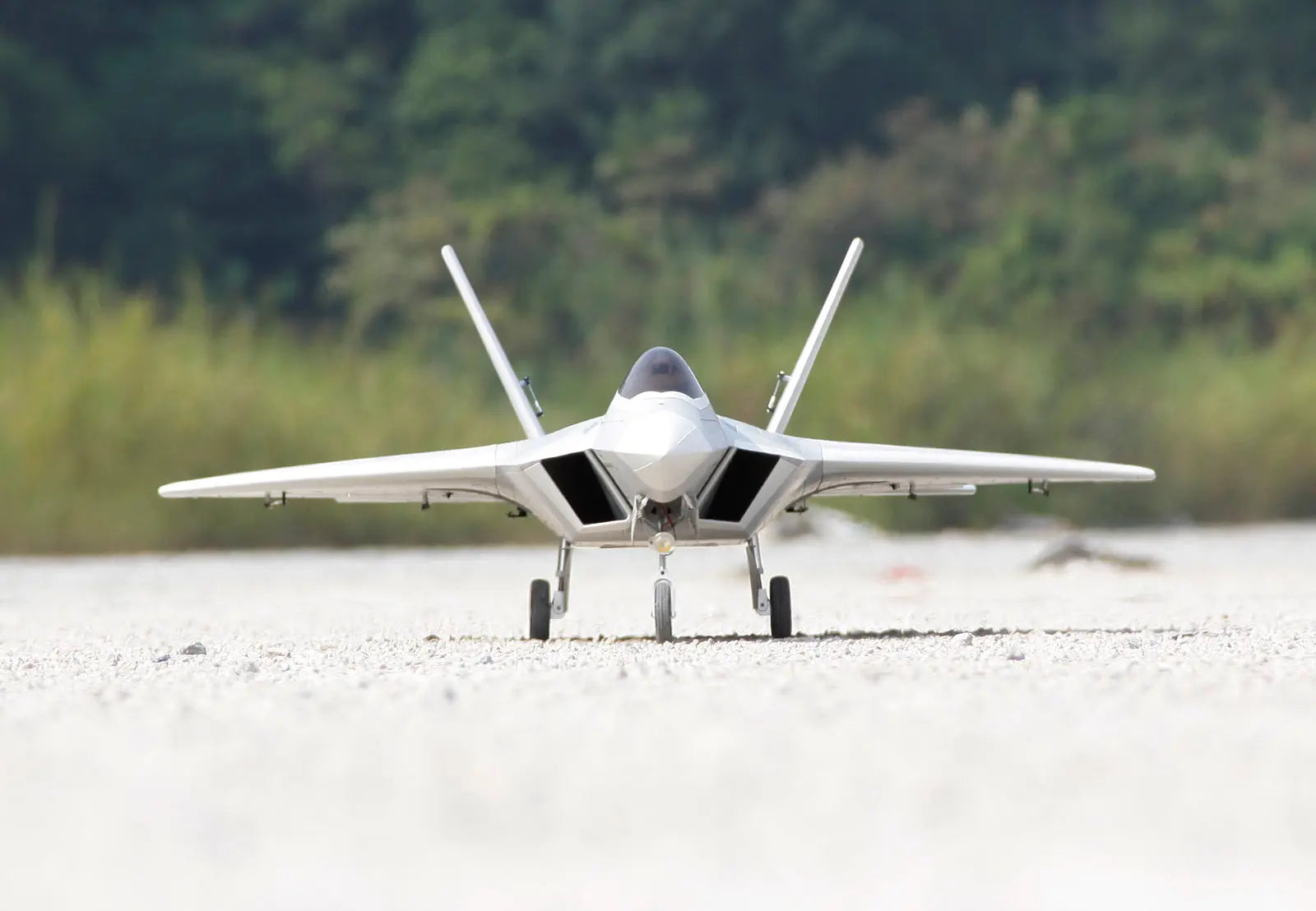

The F-22 Raptor is the world’s first Fifth Generation fighter, and its technology and performance continue to set the standard against which all other fighter jets are judged. The Freewing F-22 is a flying RC replica of this innovative fighter jet. Boasting both the lowest stall speed and one of the highest top speeds among all of Freewing’s jets, this super scale F-22 is capable of executing maneuvers most other EDFs can only dream of –our design team considers it a Performer and a Trainer in one!
The Freewing F-22 is available in two PNP versions. The Standard version features a 90mm EDF with an all-new 9 blade single piece impeller, 3748-1750Kv outrunner brushless motor and 130A ESC. The Deluxe 8S version features a 90mm 12-blade impeller mounted to a powerful 4075-1350Kv inrunner brushless motor and a thrust reversing 120A ESC. The F-22’s maximum level airspeed exceeds 170KPH / 106MPH and 190KPH / 119MPH between the Standard and Deluxe versions, respectively.
Overall, the Freewing 90mm F-22 is a very approachable flyer and suitable for pilots moving up to their first 90mm jet from a smaller 70mm or 80mm jet. For pilots already familiar with the handling of a 90mm jet, the Freewing F-22 offers the potential to master an expanded set of realistic maneuvers.
Put stealth aside –stand out and be seen ruling the skies with your Raptor today!
Visit the Official Freewing 90mm F-22 Raptor Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Super Scale Features a mixture of sharp panel lines, graduated paintwork, and realistic decals to create the most realistic PNP foam electric F-22 on the market. |
 |
Optimized Power System Efficient, balanced, powerful EDF power system generates speeds exceeding 100mph! |
 |
Versatile A large battery bay can easily fit either 6S or 8S battery (for appropriate 6S or 8S Power System). |
 |
Grass-Capable Strong aluminum suspension landing gear and sequenced nose gear doors. |
 |
Officially Licensed This Freewing F-22 is officially licensed by Lockheed Martin. |
 |
MultiShadeâ„ ¢ livery 12 different colors and subtle shades in metallic, satin, and matte finishes of paint and decals combine to enhance the model’s visual representation of the real F-22’s stealth coating. |
 |
Multi-Material Using the right materials for the right job, the Freewing F-22 employs EPO foam, aluminum, carbon fiber, steel, nylon, plastic, and plywood. |
 |
User Friendly Servos are housed within plastic trays for easy removal and servicing, and the cockpit is lined with thin plastic to resist heat damage. |
 |
Easy-To-Transport Main wings disconnect conveniently with a flexible ribbon wire cable, which smartly reduces the load exerted on the actual electronic connections. A magnetic plastic nose cone also reduces the model’s length for easier transport. |
 |
Organized Integrated MFCB improves wire organization and supports DIY expansions such as LEDs. |
Features:
- NEW! 12 Blade EDF with 8S power system with 4075-1350Kv inrunner motor
- NEW! 120 Amp ESC with 8A UBEC and Thrust Reversing
- Model officially licensed by Lockheed Martin
- Exceptional low speed stability and high speed agility
- Realistic Scale Maneuver capability includes Cobra, Mongo Flip, J-Turn, Descending Spiral, Hover, etc
- Has the lowest stall speed and one of the highest top speeds among all of Freewing’s jets
- Large battery bay to easily fit either 6S or 8S battery (for appropriate 6S or 8S Power System)
- Materials include EPO foam, aluminum, carbon fiber, steel, nylon, plastic, and wood for maximum durability
- Features a mixture of sharp panel lines, graduated paintwork, and realistic decals for maximum realism
- MultiShadeâ„ ¢ livery incorporating paint and decals with over 12 different colors and subtle shading in metallic, satin, and matte finishes
- Servos are housed within plastic trays for easy removal and servicing
- Cockpit is lined with thin plastic to resist heat damage
- Grass-capable suspension landing gear and sequenced nose gear doors with magnet assist
- Main wings disconnect conveniently with a flexible ribbon wire cable, which smartly reduces the load exerted on the actual electronic connections
- Magnetic nose cone encased in molded plastic with raised surface details can be removed easily to reduce the model’s length during transport to your flying field
- MFCB for wire organization and future expansion-potential with LEDs and optional accessories
- Widened gear stance and larger-than-scale grass-appropriate wheels greatly improve ground handling on short grass runways
- Ball Bearing-supported horizontal stabilators
- Screw-assembly for all flying surfaces
- Capable of Expert-level maneuvers as well as smooth, stable slow flight for less-experienced jet flyers
Includes:
- Freewing F-22 Raptor Ultra Performance 8S 90mm EDF Jet - PNP
- 12-Blade EDF power system (installed)
- 4075-1350Kv inrunner brushless motor (installed)
- 120A ESC with thrust reversing and EC5 connector (installed)
- Electronic retractable landing gear (installed)
- Servos, LED Lights (installed)
Requires:
- 6 Channel radio
- 6 Channel receiver
- TWO 4 Cell 14.8V 6000 mAh LiPo batteries with EC5 connector
- OR -
ONE 6 Cell 22.2V 5000 mAh LiPo battery with EC5 connector AND ONE 2 Cell 7.4V 5000 mAh LiPo with EC5 connector - EC5 2-to-1 series adapter
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our
