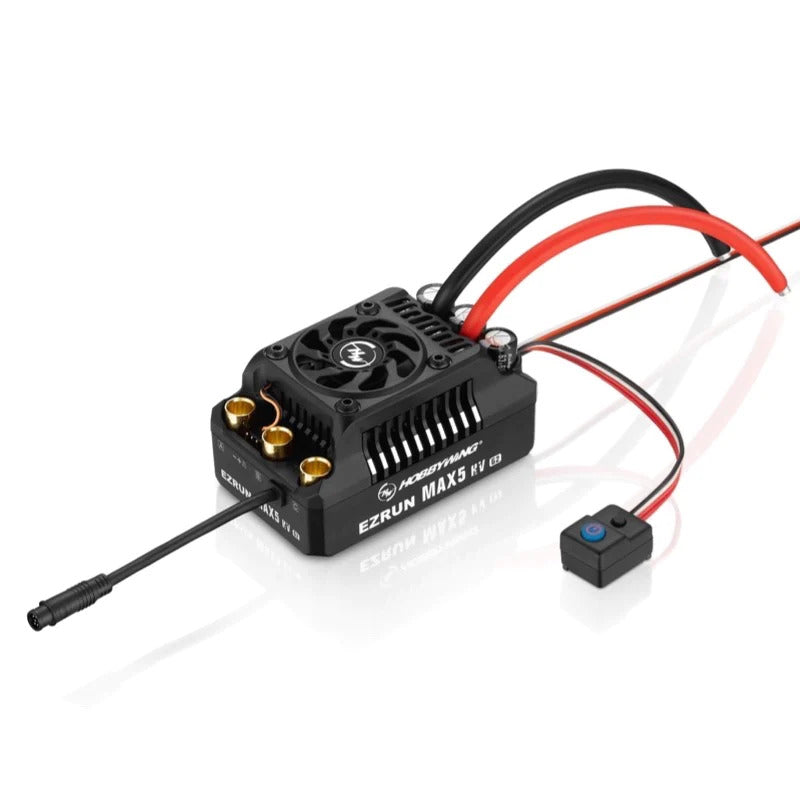

The Hobbywing EZRun MAX5 G2 1/5 Scale Waterproof Brushless ESC is a 12S capable ESC designed for 1/5 scale power! The MAX5 provides the ultimate power upgrade solution for many popular 1/5 scale vehicles like the HPI Baja Buggy, Losi 5IVE-T Nitro-to-Electric Truck, and Desert Buggy XL Nitro-to-Electric buggy. It is also suitable for various other brands of 1/5 scale on-road cars, buggies, and truggies. The strong explosive, stable output power, together with excellent low-speed linearity, ensures the ESC meets various application requirements such as; violent start-up, straight-line high-speed, flying slopes, low-speed walking, etc.
NOTE: For peak performance, it is recommended to pair this ESC to the Hobbywing EzRun 56118 SD G2 Motors.
Features:
- Enhanced Performance: The ESC supports up to 12s Lipo with a maximum output current of up to 250A.
- Intelligent Freewheeling Technology: The innovative intelligent freewheeling technology effectively reduces heat generation and enables the ESC to have higher driving efficiency.
- Turbo Timing Technology: The ESC is able to support up to 24 degrees of Turbo Timing adjustment.
- Continuous Current: 250A
- Peak Current: 1,600A
- Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
- Applications: 1/5th Touring Car, Buggy, Truggy, and Truck
- LiPo/NiMH Cells: 6-12S LiPo
- BEC Output: 6V/7.2V/8.4V Switchable, Continuous Current of 8A (Switch-mode)
- Connectors: Input End: None, Output End: Female 8.0mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
- Size (LxWxH): 94.5x59.4x50.9mm
- Weight: 428.5g
- Programming Port: Independent Programming Port
