Castle Creations Hydra Cobra 6 8S Marine ESC with 8A BEC - CSE010018900

Castle Creations Hydra Cobra 6 8S Marine ESC with 8A BEC

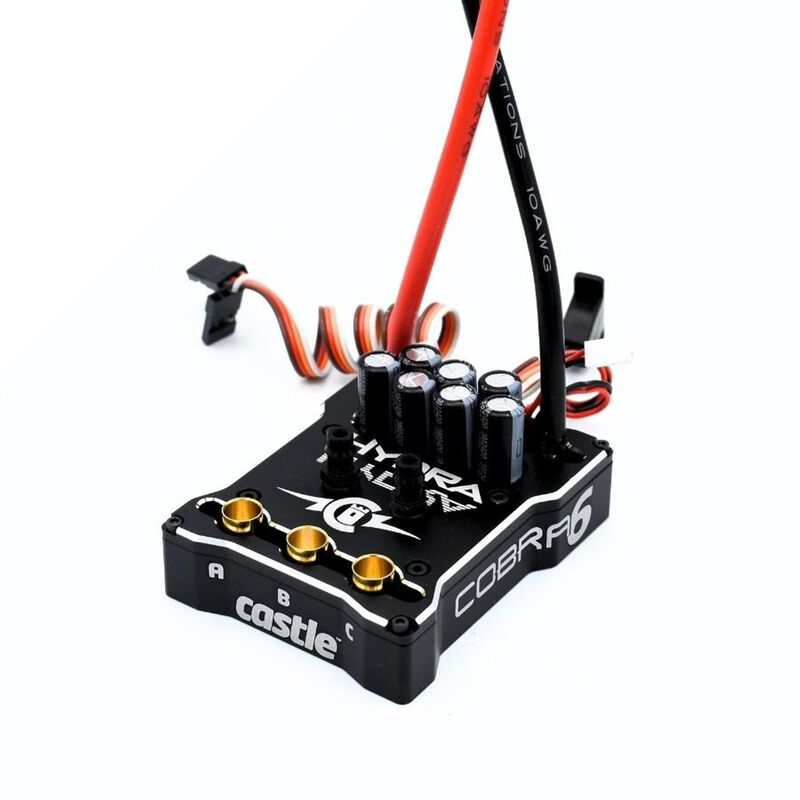

Castle Creations Hydra Cobra 6 Sensored Marine Electronic Speed Control Overview

This marine-focused ESC features a custom water-cooled heatsink for efficient thermal management and an aluminum top plate with dual anodized water fittings (.17" OD, 10-32 UNF threads). The ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and includes an upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.

Access to tuning options, data logs, and firmware updates for the COBRA SERIES ESCs is available at no charge using the Castle Link V4 USB adapter included in the box and Castle Link 2 software, available for download on the Castle Creations website.

The HYDRA COBRA 6 is packed with a potent combination of hardware and software advancements, making it an indispensable ally in high-performance power systems. Users will benefit from the same footprint as its predecessor, the Hydra X 8S, while an upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.

Castle's newest software technology, CRYO-DRIVE™ minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense™ software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high efficiency sensorless running makes the Hydra ESC produce more power and less heat. QUIETSENSE™ is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.

The Hydra 6 allows “on-the-fly” adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system. Click here for additional information.

Enabled by default, the Hydra 6 captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life.

For over 25 years Castle engineers have set the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply download the simple to install software from our website and you are ready to personalize your controller's settings.

You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the B-Link 2 Bluetooth Interface (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!

Housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

Hydra Cobra 6 features Audible Alerts that will notify you via audible chimes of possible issues with calibrations and error conditions to help diagnose problems

Castle Creations Hydra Cobra 6 Sensored Marine Electronic Speed Control Features

• 32-Bit processing power for smoother motor control and improved response time.
• Enhanced Data Logging includes: Double the maximum sample frequency of older generations, 8x increased logging time of older generations, ESC electrical motor timing data, acceleration data via onboard accelerometer, looping feature prevents interruptions in data log recording.
• Additional tuning features include: Improved braking adjustability, separate brake and reverse curves, highly adjustable internal BEC (5.0V - 8.5V adjustable in 0.1V increments)
• Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase.
• Optional smartphone-based programming with the B-LINK™ 2 Bluetooth Interface(sold separately) and free Castle Link 2 app available on Google Play or Apple App Store.
• Upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.
