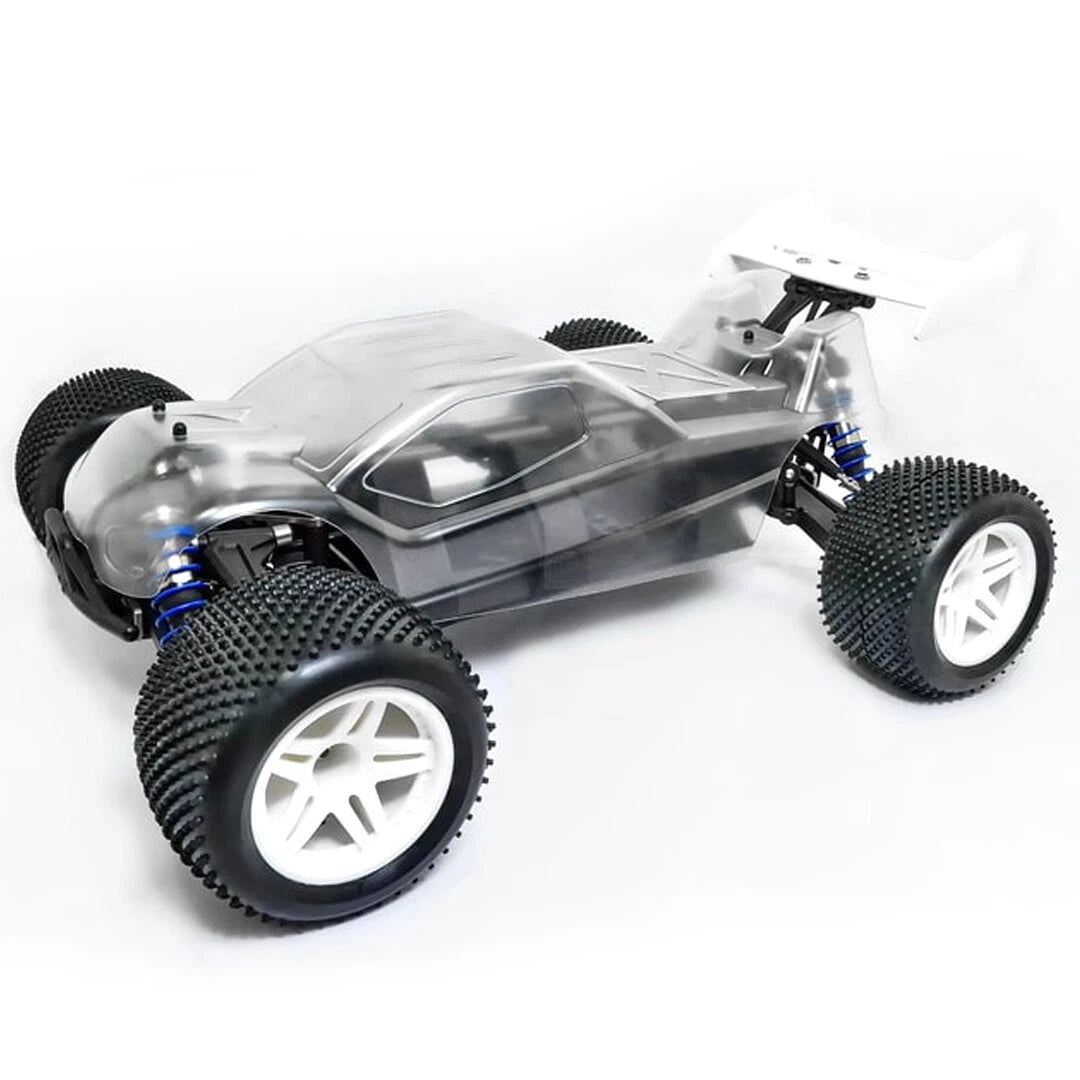

1/10 HOBAO HYPER TT 2.0 PRO ELECTRIC TRUCK ARR- CLEAR BODY HB-TT2E

NEW HoBao 1/10 Hyper TT2.0 PRO Electric Truck ARR Kit with Clear Body HB-TT2E

All Metal Parts CNC Machined.

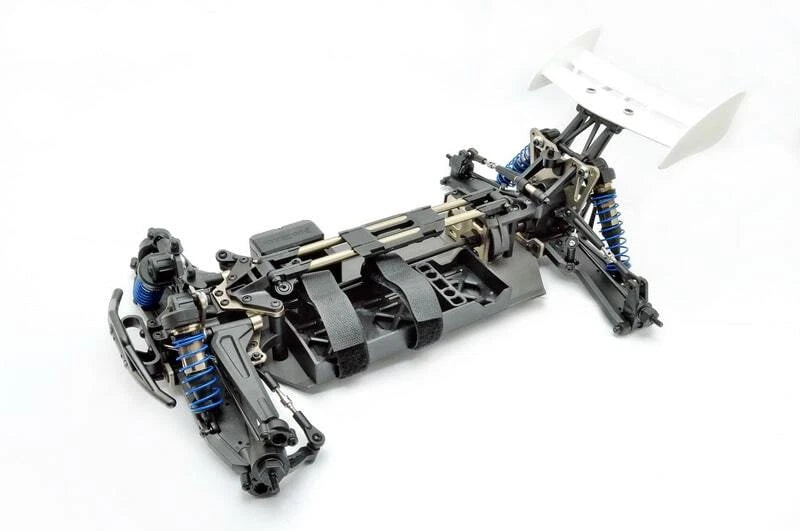

Chassis: Lightweight, Hard anodized CNC aluminum, 3mm thick.
Center Top Brace

Wire pass through.

Drive:

Central: Single Ø4mm Hardened steel center driveshaft.
Optional Alum driveshaft  #OP1-0072.
Front: CVA axles,  Ø3.2mm Hardened steel.
Rear: Dogbone axles, Ø3.2mm Hardened steel.
Differentials:

Center diff is directly connected to rear diff.
Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1)
Center Spur Gear:  40T (MOD 1)
Front differential filled with #5K silicone oil.
Center differential filled with #5K silicone oil.
Rear differential filled with #3K silicone oil.

Shocks:

Filled with #600 silicone oil.
Alum 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector.
Spring:
-. Front: 0.86kg/cm, L=50mm, Blue
-. Rear: 064kg/cm, L=65mm, Blue
-. Optional Front Spring #OP1-0073: 1kg/cm, L=50mm, Grey
-. Optional Rear Spring #OP1-0074: 0.73kg/cm, L=65mm, Grey
-. Shock Tower: 3mm CNC alum
-. Optional carbon fiber shock tower, Front tower #OP1-0070 & Rear tower #OP1-0071

Suspension:

Front PBS
Optional alum steering block set #OP1-0077; Alum rear hub #OP1-0079

New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the TT10)
Optional carbon fiber arm insert #OP1-0068 and #OP1-0069

Front & rear anti-roll bars.
Front and rear CNC alum arm holder with pill inserts #11367, adjustable toe angles and anti-squat angles


Steering:

New Steering Crank set with CNC alum rack and hard spring.
Ball bearing equipped with servo saver

Battery tray:


Motor Gear: 13T (MOD 1)
Spur Gear: 40T (MOD 1)
Motor Mount:

CNC alum laydown motor mount
Fitting for motors with size below 38mm
Spur gear cover
Tires: Pin-spoke tires

Wheel Hex Hub:

Front 12mm wheel hex hubs , Plastic
Rear 12mm wheel hex hubs, +1mm , Plastic
Optional Front wheel hex hubs #OP1-0075; Rear wheel hex hubs #OP1-0076

Wheels:

5-Spoke wheels, white, 12mm Hex
Optional yellow wheels #11106Y/ Pre-Mounted Tires on yellow Wheels #11105Y

Ball Bearings: Full set included
Body:  Clear Body
Caster: Adjustable.
Camber: Adjustable.

[REQUIREMENTS]

Radio 2 channel
ESC & Motor
High-torque steering servo
Glue for tire
Paint for body
LiPo batteries with single Dean plug connector
Battery Charger
AA Batteries for Transmitter (4)
