Description

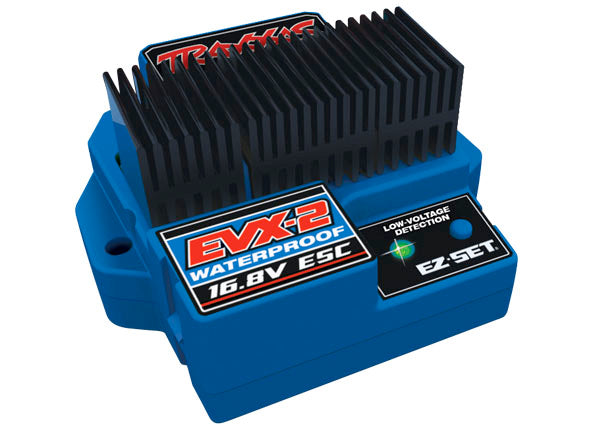

This is the Traxxas EVX-2 Forward/Reverse Speed Control. This ESC is recommended for 16.8V dual battery/dual motor applications. The EVX-2 delivers an incredible 16-plus volts, from two battery packs, making 16.8-volt, twin-motor setups more powerful than ever! Designed by Traxxas, the EVX-2 features a completely waterproof design, three drive profiles, Thermal Shutdown Protection, and gold-plated Traxxas High-Current Connectors. The EVX-2 also includes patent-pending Training Mode. This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. EVX-2 is equipped with two-stage low voltage detection (LVD) to allow LiPo battery use.
Features:
- 16.8 Volts of power
- Traxxas High Current Connectors
- Three Drive Profiles
- Patant Pending Training Mode
- Waterproof Design
- Double Coated Electronics Prevent Water Damage
- EZ-Set Push Button Setup
- Thermal Shutdown Protection
- Microprocessor Controlled
Specifications:
Input Voltage: 6-14 Cells (7.2 - 16.8V)
Case Size (WxDxH): 2.27x2x1.05"
Weight (w/o Heatsink): 3.6oz
Motor Limit: 540 - 10 turn/550 - 12 turn
On Resistance: 0.004 ohm
Rated Current: 180 Amps
Braking Current: 360 Amps
Reverse Delay: None
BEC Voltage: 6V DC
BEC Current: 2.5 Amps
Power Wire: 14awg 3"
Input Harness: 26awg 9.5"
Motor Wires: 14awg 9"
Transistor Type: Mosfet
PWM Frequency: 1700 Hertz
Protection: Thermal Shutdown
