TAMIYA PORSCHE 911 GT3 (992) (TT-02)

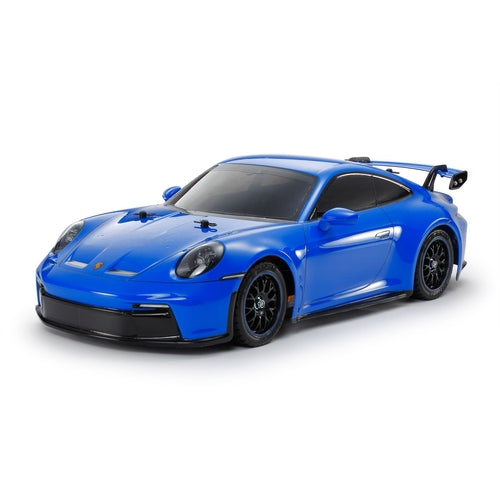

Length: 467 mm. Image shows painted and assembled kit.
Image shows painted and assembled kit.
Modern Day Legend
A special place in the long and storied history of the Porsche 911 is occupied by the 911 GT3, high performance cars with naturally-aspirated engines suited to racing. Announced in 2021, the Porsche 911 GT3 (992) employs a 4.0-liter horizontally opposed 6-cylinder engine capable of 510hp. Superior downforce is provided by the rear wing with swan-neck connection and a rear diffuser, and other highlights are a front apron with optimized cooling, and a lightweight carbon fiber hood with air outlets. This assembly kit R/C model recreates the alluring 911 GT3 (992) form with a polycarbonate body, and pairs it with the TT-02 chassis.
TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Dark gun metal color wheels use racing radial tires.
Specifications
Length: 467mm, width: 188mm, height: 131mm
A special place in the long and storied history of the Porsche 911 is occupied by the 911 GT3, high performance cars with naturally-aspirated engines suited to racing. Announced in 2021, the Porsche 911 GT3 (992) employs a 4.0-liter horizontally opposed 6-cylinder engine capable of 510hp. Superior downforce is provided by the rear wing with swan-neck connection and a rear diffuser, and other highlights are a front apron with optimized cooling, and a lightweight carbon fiber hood with air outlets. This assembly kit R/C model recreates the alluring 911 GT3 (992) form with a polycarbonate body, and pairs it with the TT-02 chassis.
TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Dark gun metal color wheels use racing radial tires.
Specifications
Length: 467mm, width: 188mm, height: 131mm
Wheelbase: 251mm
Tire width/diameter: 26/66mm (front & rear)
Bathtub-type frame
Shaft-driven 4WD
Front/rear 4-bevel plastic differentials
3-piece steering tie-rod
4-wheel double wishbone suspension
Front/rear friction dampers
Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Type 540 motor
Electronic Speed Controller (ESC) is sold separately.
Separately Required Items
Separately Required Items
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger
-
★A polycarbonate body captures the super stylish 911 GT3 (992) form in style.
-
★A closer look at one of the headlight cases for the front of the car.
-
★Side mirrors are separately molded parts.
-
★Take a look at the rear end of the model, with a succinct depiction of the diffuser.
-
★The rear wing stays are separate parts, too.
-
★Dark gun metal color mesh design wheels can be decorated with the included pinstripe stickers. Tires are racing radials.
-
★Resin ball links in the steering linkage joints make for smooth, comfortable motion.
-
★The front suspension uses coil-sprung dampers.
-
★Motor cover includes removable cooling duct (not attached in image).
-
★This image gives a closer look at the rear double-wishbone suspension, and the brake disc-shaped wheel hubs.
